Approvals
Line Diagram
General Data

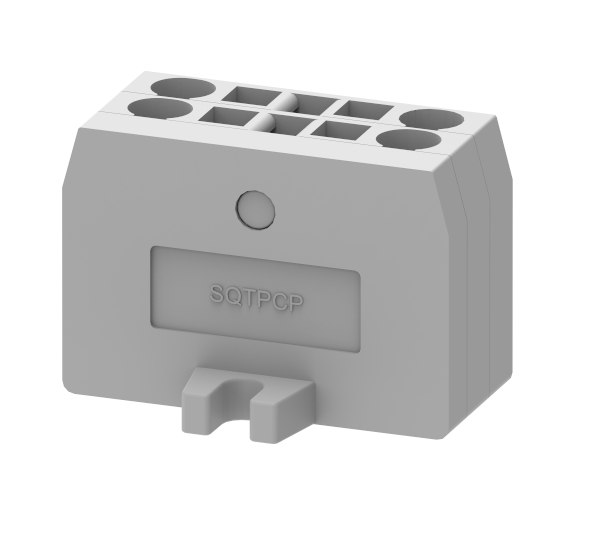

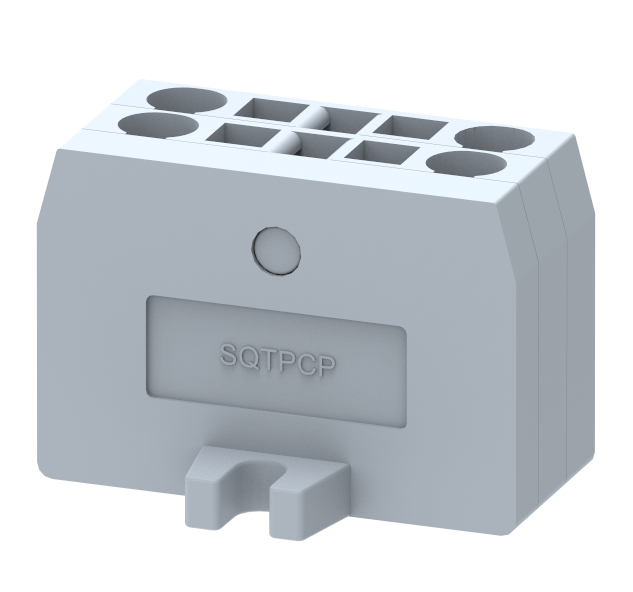

| Type | SQTP2.5-2W |
| Wire termination Technology | Spring Cage Connection |
| Rating | 800 V / 24 A / 2.5 sq.mm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 20 |
| Country of Origin | India |
| Width (mm) | 5 |
| Width (inches) | 0.2 |
| Length (mm) | 32 |
| Length (inches) | 1.26 |
| Height (mm) | 22 |
| Height (inches) | 0.87 |
| Weight For Standard Packing Qty (kg) | 0.32 |
| Housing | Polyamide 6,6 |
| Clamping Material | Spring Steel |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.08 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Solid Wire - Max (sq.mm) | 4 |
| Standard | IEC60947-7-1 |
| Rated Voltage (V) | 800 |
| Rated Current (A) | 24 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current | 0.3 |
| Rated Impulse Withstand Voltage (kV) | 8 |
| Pollution Degree | 3 |
