Approvals
Line Diagram
General Data

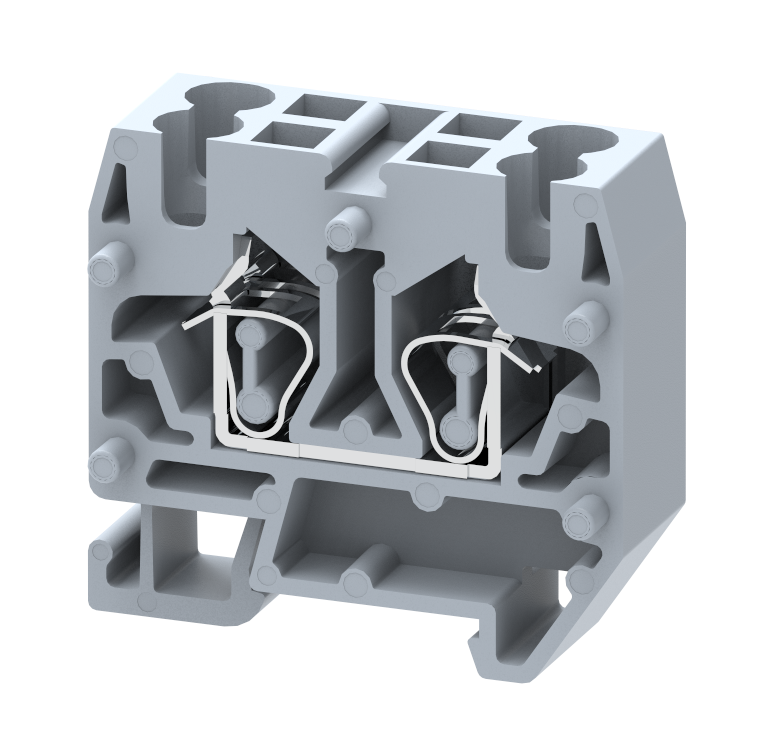

| Type | SQTM2.5P4 |
| Wire termination Technology | Spring Cage Connection |
| Rating | 800 V / 24 A / 2.5 sq.mm |
| GTIN / Harmonize Custom Code | 8904476705914 |
| Standard Packing Qty (in No) | 50 |
| Country of Origin | India |
| Thickness (mm) | 10 |
| Thickness (inches) | 0.39 |
| Width (mm) | 33.3 |
| Width (inches) | 1.31 |
| Height (mm) | 30 |
| Height (inches) | 1.18 |
| Weight For Standard Packing Qty (kg) | 0.47 |
| Housing | Polyamide 6,6 |
| Clamping Material | SS |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.08 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Solid Wire - Max (sq.mm) | 4 |
| Standard | IEC60947-7-1 |
| Rated Voltage (V) | 800 |
| Rated Current (A) | 24 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current | 0.3 |
| Rated Impulse Withstand Voltage (kV) | 8 |
| Pollution Degree | 3 |
