Approvals
Line Diagram
General Data

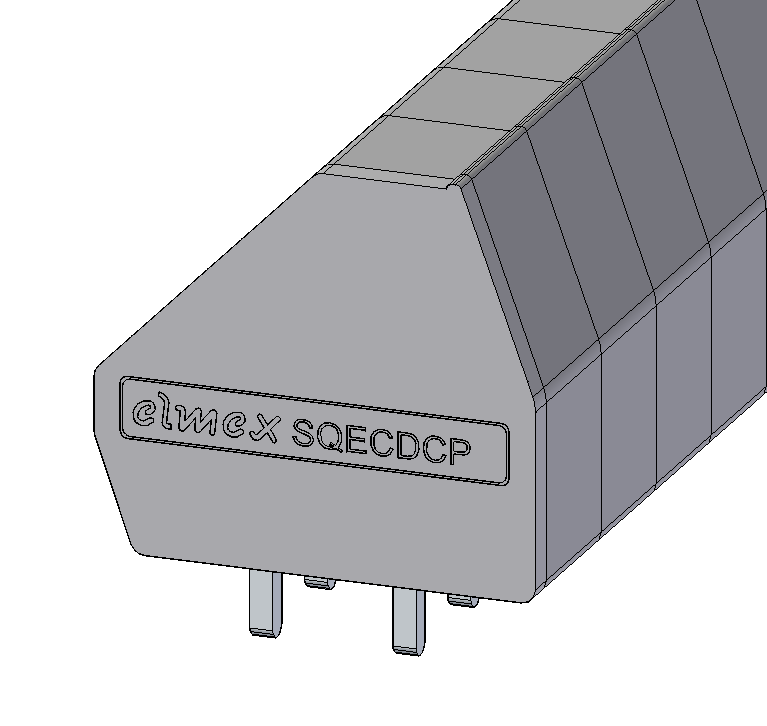

| Type | SQECD-4W |
| Wire termination Technology | Spring Cage Connection |
| Rating | 250 V / 15 A / 2.5 sq.mm / - Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 100 |
| Country of Origin | India |
| Width (mm) | 21.3 |
| Width (inches) | 0.84 |
| Length (mm) | 15.4 |
| Length (inches) | 0.61 |
| Height (mm) | 14.2 |
| Height (inches) | 0.56 |
| Weight For Standard Packing Qty (kg) | 0.59 |
| Housing | Polyamide 6,6 |
| Clamping Material | SS |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.5 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Standard | IEC 60947-7-4 |
| Rated Voltage (V) | 250 |
| Rated Current (A) | 15 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current | - |
| Rated Impulse Withstand Voltage (kV) | 4 |
| Pollution Degree | 3 |
