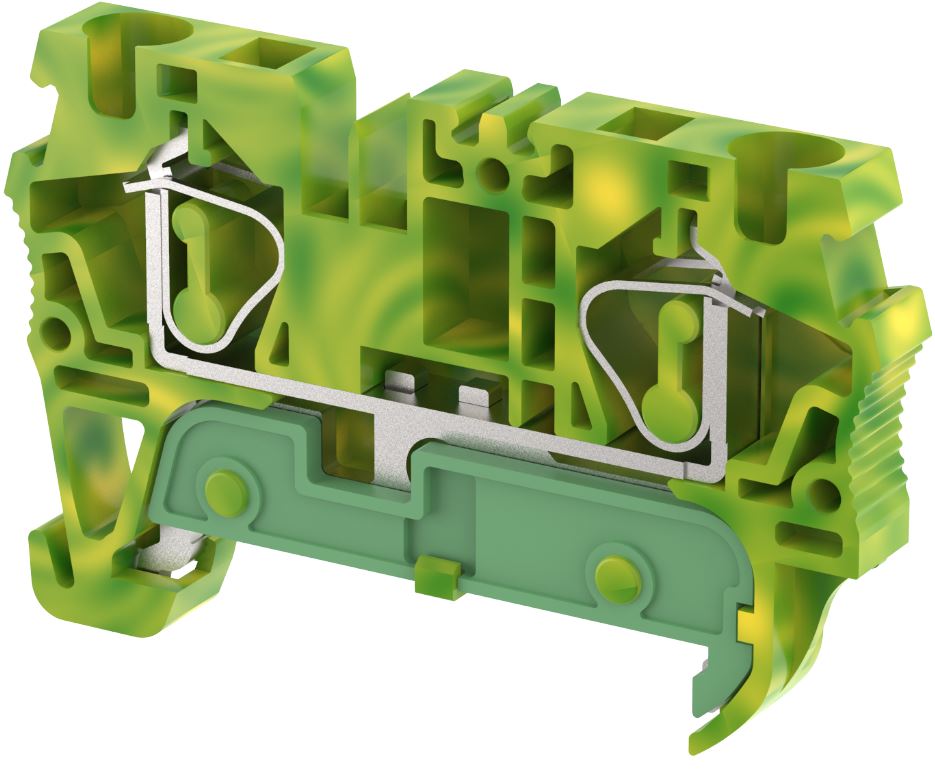

SGQ4

Approvals

UL Recognition for USA CE Mark Conforming to IEC Specification IEC CB LR : Lloyd’s Register

Line Diagram


General Data

Type SGQ4
Wire termination Technology Spring Cage Connection
Rating 4 sq.mm / Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 100
Country of Origin India

Width (mm) 6
Width (inches) 0.24
Length (mm) 56.2
Length (inches) 2.21
Height (mm) 36
Height (inches) 1.42
Weight For Standard Packing Qty (kg) 1.24

Housing Polyamide 6,6
Clamping Material SS
Standard Colour Green-Yellow

Stranded Wire - Min (sq.mm) 0.08
Stranded Wire - Max (sq.mm) 4
Solid Wire - Max (sq.mm) 6

Standard IEC 60947-7-2
Rated Voltage (V) -
Rated Cross Section (sq.mm) 4
Short Time Withstand Current 0.48
Pollution Degree 3

Wire Cross Section - min (AWG) 24
Wire Cross Section - max (AWG) 10

Conductor Size - min (AWG) 24
Conductor Size - max (AWG) 10

Cover Profile
PCPDBF-1
  • Cover Profile , Type -PCPDBF-1
  • Height : 13.9 mm
  • Thickness : 1.5 mm
  • Length : 66 mm
DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34 mm
  • Width : 9 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Color - Grey
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover
CSP4
  • End Cover for terminal type - PQ4 , PGQ4 , SQ4 , SGQ4
  • Height : 23 mm
  • Width : 2 mm
  • Length : 56.2 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Partition Plate
DBF-1
  • Partition Plate with foot used to support protection cover , Type - DBF-1
  • Height : 31.4 mm
  • Width : 3 mm
  • Length : 60 mm
Plug-in Bridge/Jumper
SLPU6-2W
  • Plug In Bridge, Type – SLPU6-2W
  • Height : 26 mm
  • Width : 10.15 mm
  • Pitch : 6 mm
SLPU6-10W
  • Plug In Bridge, Type – SLPU6-10W
  • Height : 26 mm
  • Width : 58.15 mm
  • Pitch : 6 mm
SLPU6-3W
  • Plug In Bridge, Type – SLPU6-3W
  • Height : 26 mm
  • Width : 16.15 mm
  • Pitch : 6 mm
SLPU6-4W
  • Plug In Bridge, Type – SLPU6-4W
  • Height : 26 mm
  • Width : 22.15 mm
  • Thickness : 2.5 mm
  • Pitch : 6.25 mm
SLPU6-5W
  • Plug In Bridge, Type – SLPU6-5W
  • Height : 26 mm
  • Width : 28.15 mm
  • Pitch : 6 mm
SLPU6-6W
  • Plug In Bridge, Type – SLPU6-6W
  • Height : 26 mm
  • Width : 34.15 mm
  • Pitch : 6 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
