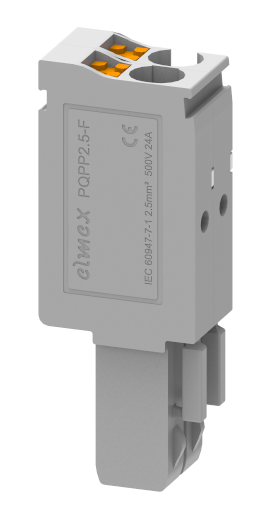

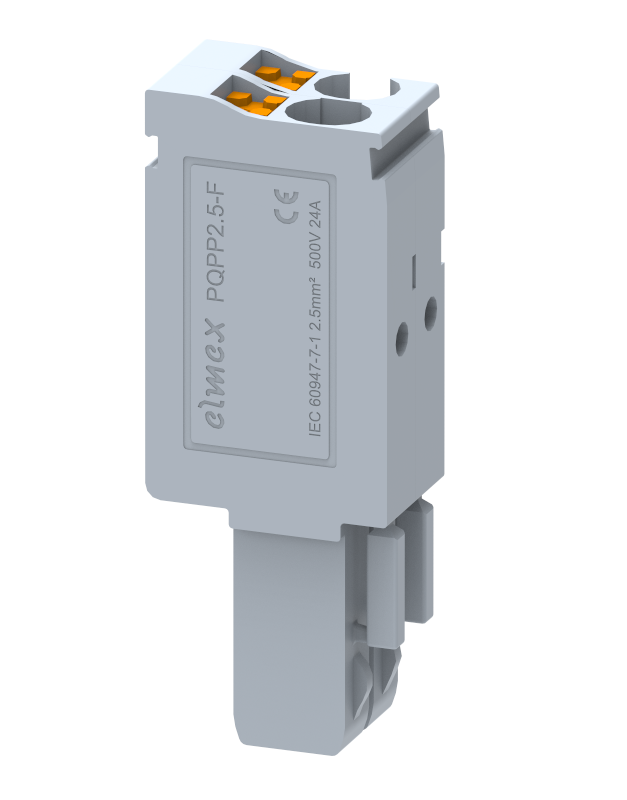

PQPP2.5F-2W

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type PQPP2.5F-2W
Wire termination Technology Push In Connection
Rating 500 V / 24 A / 2.5 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 100
Country of Origin India

Thickness (mm) 10
Thickness (inches) 0.39
Width (mm) 15.8
Width (inches) 0.62
Height (mm) 42
Height (inches) 1.65
Weight For Standard Packing Qty (kg) 0.73

Housing Polyamide 6,6
Clamping Material SS
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.08
Stranded Wire - Max (sq.mm) 4

Standard IEC 60947-7-1
Rated Voltage (V) 500
Rated Current (A) 24
Rated Cross Section (sq.mm) 2.5
Short Time Withstand Current (kA) 0.3
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Marker For Terminal Blocks
LABEL KN5.08
  • Snap on type PVC marking Label , Type - KN 5.08
  • Pitch : 5.08 mm
Operating lever
PQPP2.5F-LVR-1W-ORG
  • ELMEX MAKE 1W LEVER FOR PUSH-IN PLUG SOCKET - ORANGE
  • Height : 29.7 mm
  • Thickness : 9 mm
PQPP2.5F-LVR-2W-ORG
  • ELMEX MAKE 2W LEVER FOR PUSH-IN PLUG SOCKET - ORANGE
  • Height : 29.7 mm
  • Thickness : 9.8 mm
SOCKET

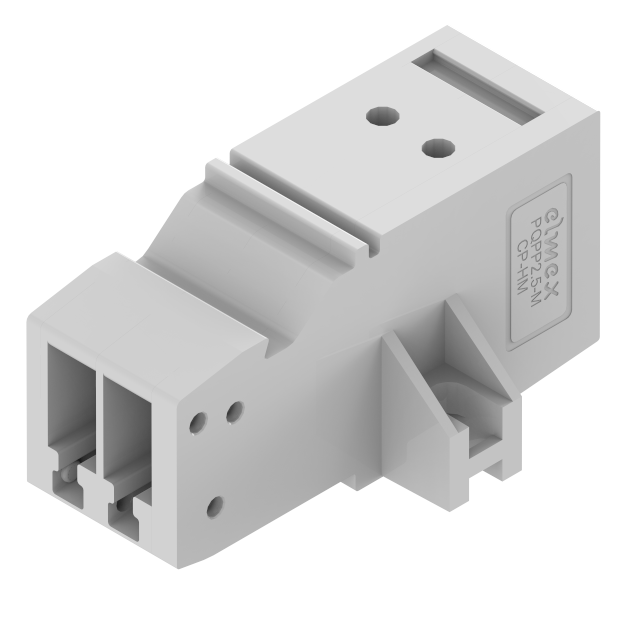

PQPP2.5M-HM2W-GREY
  • ELMEX MAKE ARA SERIES 2-WAY PUSH IN TYPE SOCKET WITH HORIZONTAL MOUNTING PROVISION FOR 2.5 SQ. MM -GREY
  • Height : 38 mm
  • Width : 18.8 mm
  • Pitch : 5 mm
  • Length : 25.5 mm

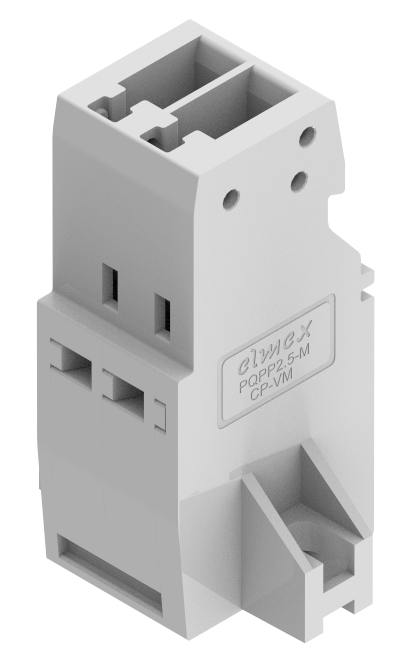

PQPP2.5M-VM2W-GREY
  • ELMEX MAKE ARA SERIES 2-WAY PUSH IN TYPE SOCKET WITH VERTICAL MOUNTING PROVISION FOR 2.5 SQ. MM -GREY
  • Height : 38 mm
  • Width : 18.8 mm
  • Pitch : 5 mm
  • Length : 25.5 mm
