Approvals
Line Diagram
General Data

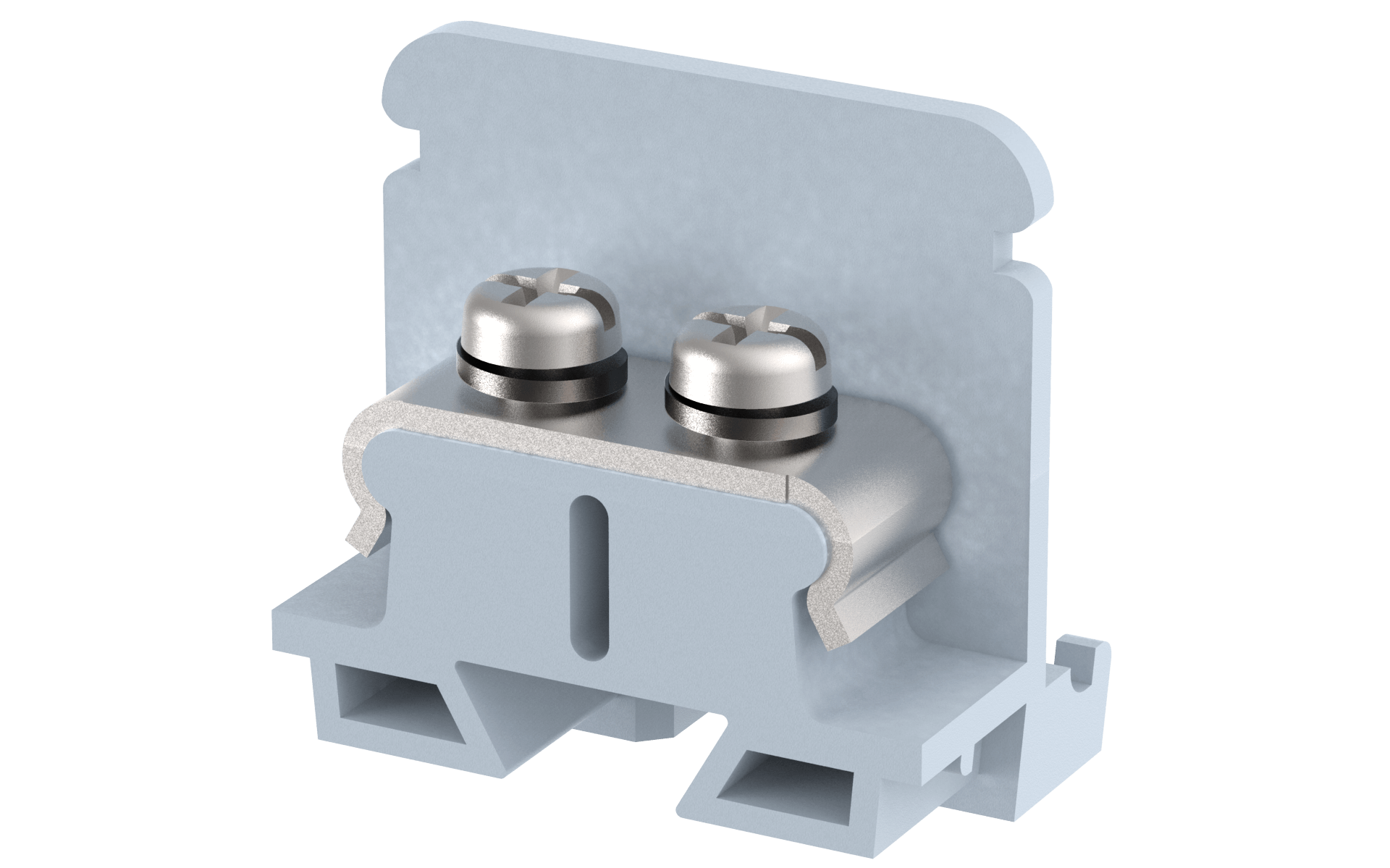

| Type | PBTM3 |
| Wire termination Technology | Screw Connection |
| Rating | 250 V / 20 A / 1.5 sq.mm / 0.5 Nm |
| GTIN / Harmonize Custom Code | NAV |
| Standard Packing Qty (in No) | 100 |
| Country of Origin | India |
| Thickness (mm) | 15 |
| Thickness (inches) | 0.59 |
| Width (mm) | 25 |
| Width (inches) | 0.98 |
| Weight For Standard Packing Qty (kg) | 0.72 |
| Housing | Polyamide 6,6 |
| Clamping Material | SS |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 0.2 |
| Stranded Wire - Max (sq.mm) | 1.5 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 250 |
| Rated Current (A) | 20 |
| Rated Cross Section (sq.mm) | 1.5 |
| Short Time Withstand Current | 0.18 |
| Rated Impulse Withstand Voltage (kV) | 4 |
| Pollution Degree | 3 |
| Rated Voltage (V) | 320 |
| Rated Current (A) | 18 |
| Rated Cross Section (sq.mm) | 1.5 |
