Approvals
Line Diagram
General Data

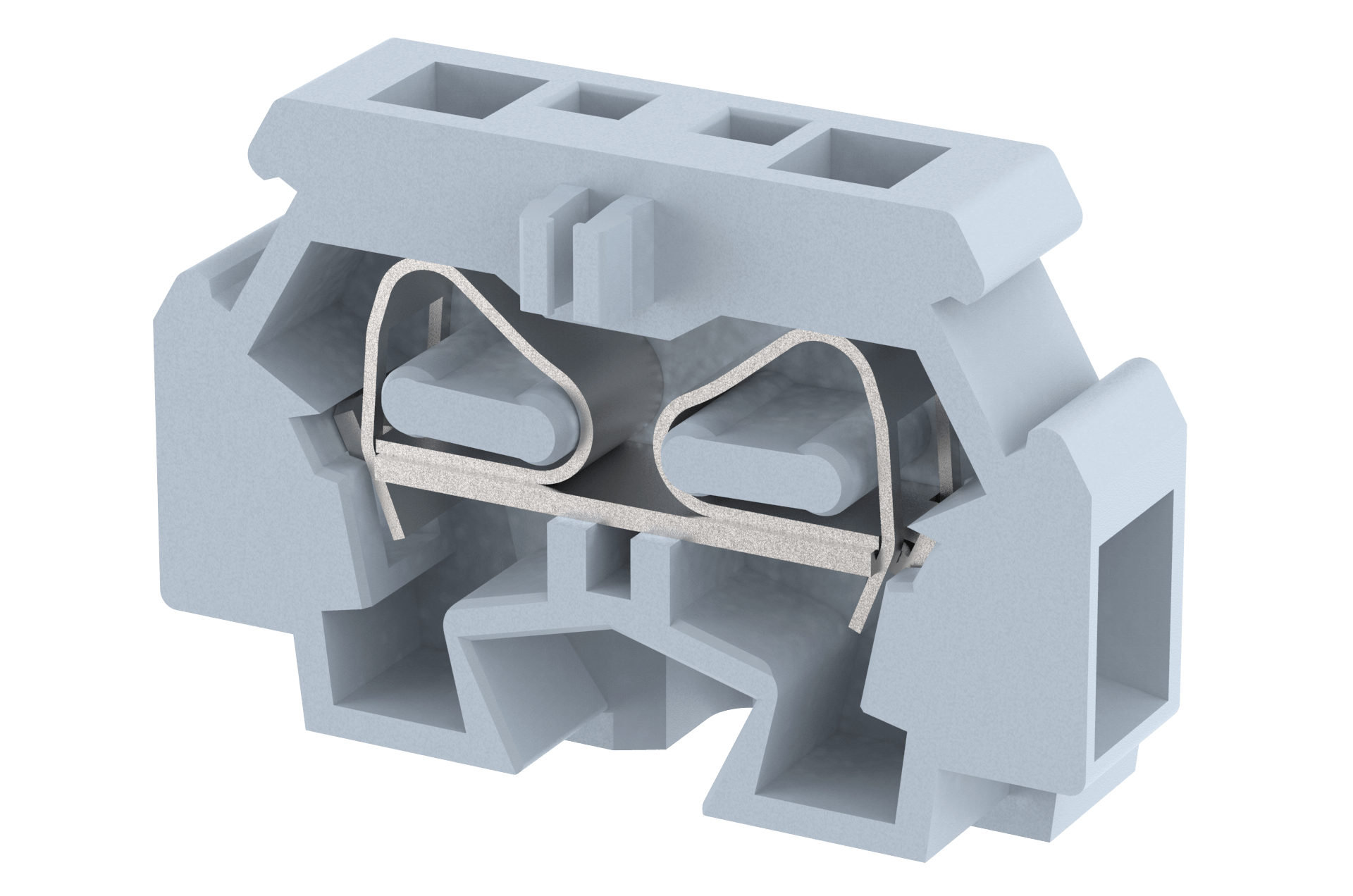

| Type | MCT4 |
| Wire termination Technology | Spring Cage Connection |
| Rating | 500 V / 32 A / 4 sq.mm |
| GTIN / Harmonize Custom Code | 8904476703989 |
| Standard Packing Qty (in No) | 200 |
| Country of Origin | India |
| Thickness (mm) | 7 |
| Thickness (inches) | 0.28 |
| Width (mm) | 33.4 |
| Width (inches) | 1.31 |
| Height (mm) | 23 |
| Height (inches) | 0.91 |
| Weight For Standard Packing Qty (kg) | 1 |
| Housing | Polyamide 6,6 |
| Clamping Material | Spring Steel |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Conductor cross section flexible min (sq.mm) | 0.5 |
| Conductor cross section flexible max (sq.mm) | 4 |
| Conductor cross section solid min (sq.mm) | 0.5 |
| Conductor cross section solid max (sq.mm) | 4 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 500 |
| Rated Current (A) | 32 |
| Rated Cross Section (sq.mm) | 4 |
| Short Time Withstand Current | 0.48 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Pollution Degree | 3 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 24 |
| Rated Cross Section (sq.mm) | 4 |
| Rated Voltage (V) | 300 |
| Rated Current (A) | 20 |
| Wire Cross Section - min (AWG) | 20 |
| Wire Cross Section - max (AWG) | 12 |
