Approvals
Line Diagram
General Data

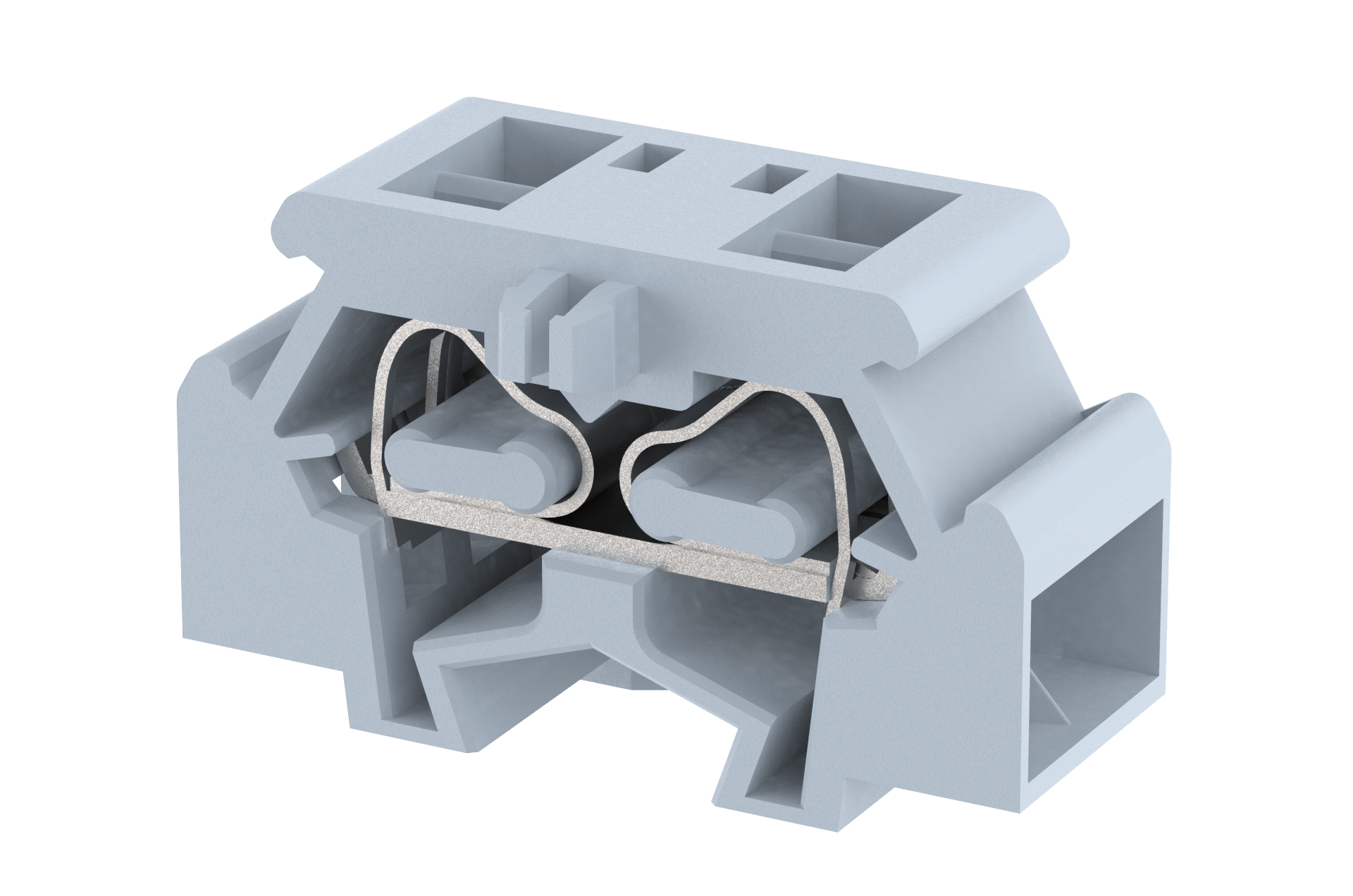

| Type | MCT2.5P4 |
| Wire termination Technology | Spring Cage Connection |
| Rating | 500 V / 24 A / 2.5 sq.mm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 100 |
| Country of Origin | India |
| Width (mm) | 10 |
| Width (inches) | 0.39 |
| Length (mm) | 30 |
| Length (inches) | 1.18 |
| Height (mm) | 18 |
| Height (inches) | 0.71 |
| Weight For Standard Packing Qty (kg) | 0.54 |
| Housing | Polyamide 6,6 |
| Clamping Material | Spring steel |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 0.5 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 500 |
| Rated Current (A) | 24 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current | - |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Pollution Degree | 3 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 20 |
| Rated Cross Section (sq.mm) | 2.5 |
| Rated Voltage (V) | 300 |
| Rated Current (A) | 15 |
| Conductor Size - min (AWG) | 22 |
| Conductor Size - max (AWG) | 14 |
