Approvals
Line Diagram
General Data

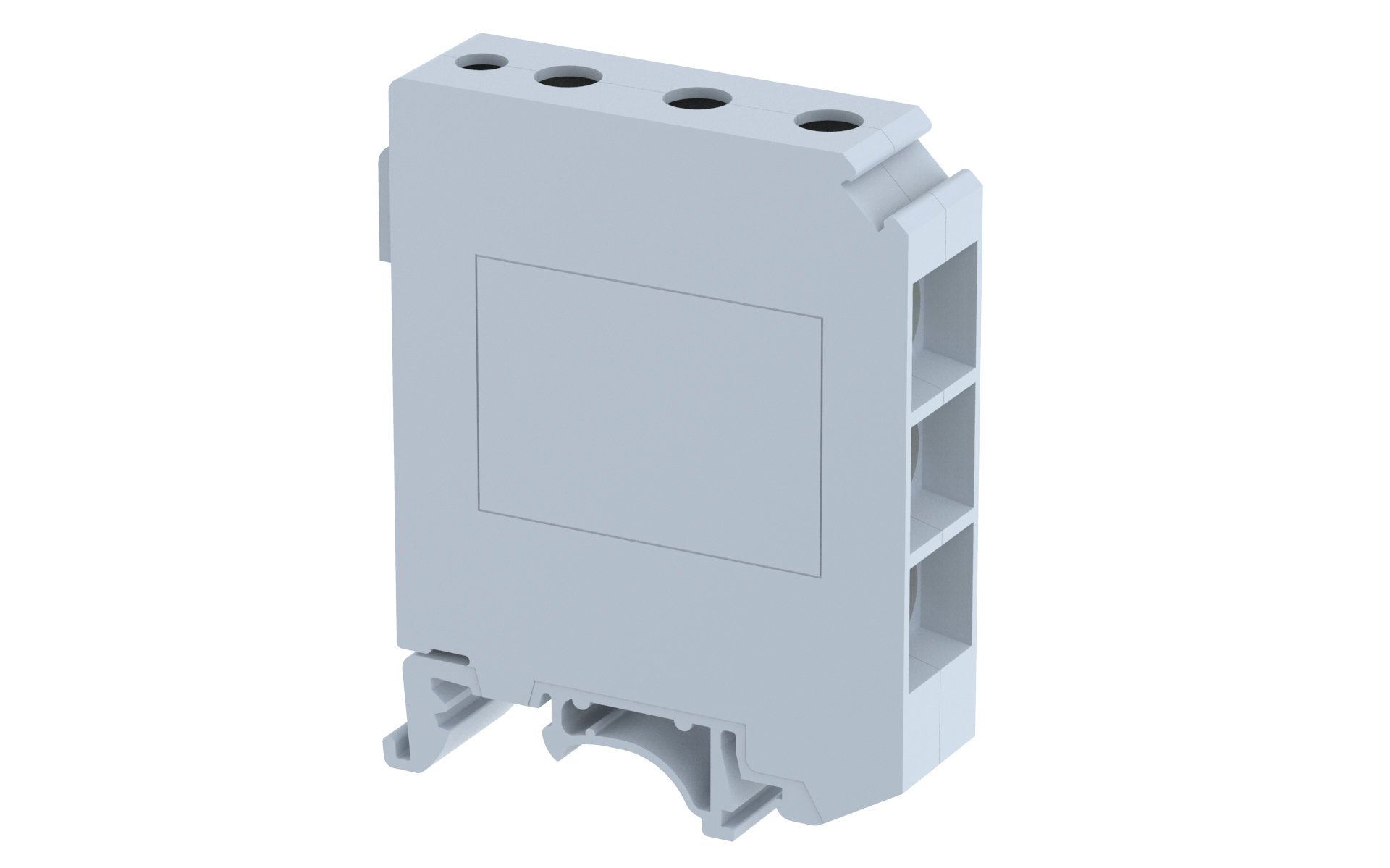

| Type | LPT335 |
| Wire termination Technology | Screw Connection |
| Rating | 400 V / 125 A / IC - 35 mm², OG - 6 sq.mm / 3.5 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 10 |
| Country of Origin | India |
| Width (mm) | 14.3 |
| Width (inches) | 0.56 |
| Length (mm) | 53.5 |
| Length (inches) | 2.11 |
| Height (mm) | 65.5 |
| Height (inches) | 2.58 |
| Weight For Standard Packing Qty (kg) | 1.68 |
| Housing | Polyamide 6,6 |
| Clamping Material | BRASS |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 6 |
| Stranded Wire - Max (sq.mm) | 35 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 125 |
| Rated Cross Section (sq.mm) | IC - 35 mm², OG - 6 |
| Short Time Withstand Current | 4.2 |
| Rated Impulse Withstand Voltage (kV) | 4 |
| Pollution Degree | 3 |
