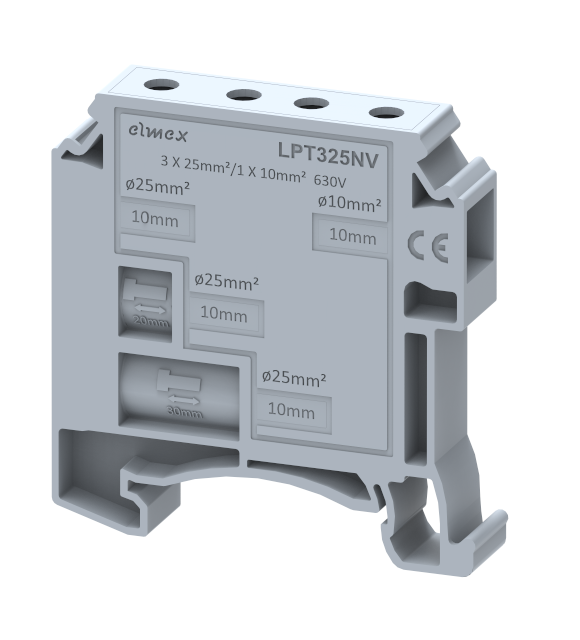

LPT325NV Terminal Blocks Screw Connection Lighting Pole Terminals Manufacturer and Supplier in India – Elmex

LPT325NV

Approvals

CE Mark Conforming to IEC Specification

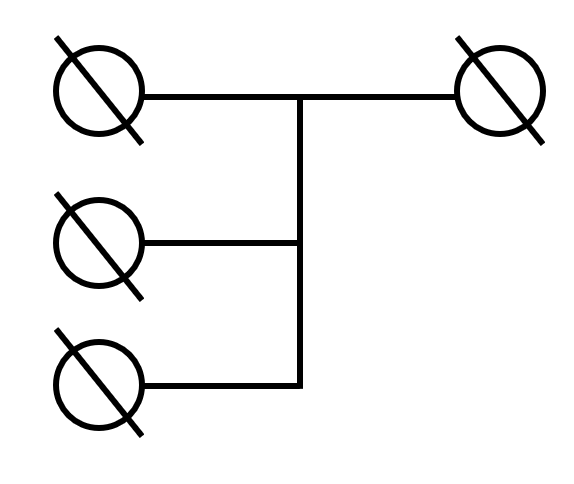

Line Diagram


General Data

Type LPT325NV
Wire termination Technology Screw Connection
Rating 630 V / 101 A / IC - 25 mm², OG - 10 sq.mm / 2.5 Nm
GTIN / Harmonize Custom Code NAV
Standard Packing Qty (in No) 10
Country of Origin India

Thickness (mm) 11.7
Thickness (inches) 0.46
Width (mm) 56.3
Width (inches) 2.22
Height (mm) 58
Height (inches) 2.28
Weight For Standard Packing Qty (kg) 0.48

Housing Polyamide 6,6
Clamping Material BRASS
Standard Colour Gray

Stranded Wire - Min (sq.mm) IC-16 mm², OG-6
Stranded Wire - Max (sq.mm) IC-25 mm², OG-10

Standard IEC 60947-7-1
Rated Voltage (V) 630
Rated Current (A) 101
Rated Cross Section (sq.mm) IC - 25 mm², OG - 10
Short Time Withstand Current 3
Rated Impulse Withstand Voltage (kV) 4

Cover Profile Carrier
UHDD
  • Cover profile carrier , Type - UHDD
  • Height : 74.5 mm
  • Thickness : 2 mm
  • Length : 55.82 mm
DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm

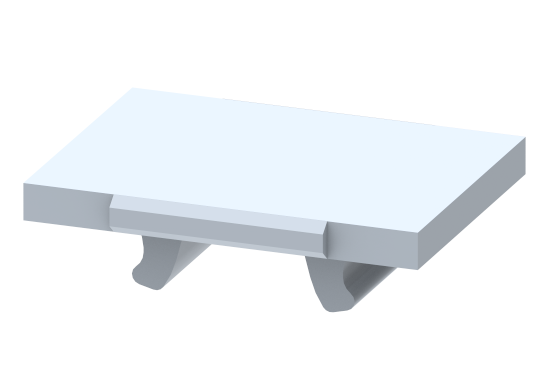

Marker For Terminal Blocks
LABEL KN12
  • Snap on type PVC marking Label , Type - KN 12
  • Height : 2.43 mm
  • Width : 12 mm
  • Length : 8.5 mm
