Approvals
Line Diagram
General Data

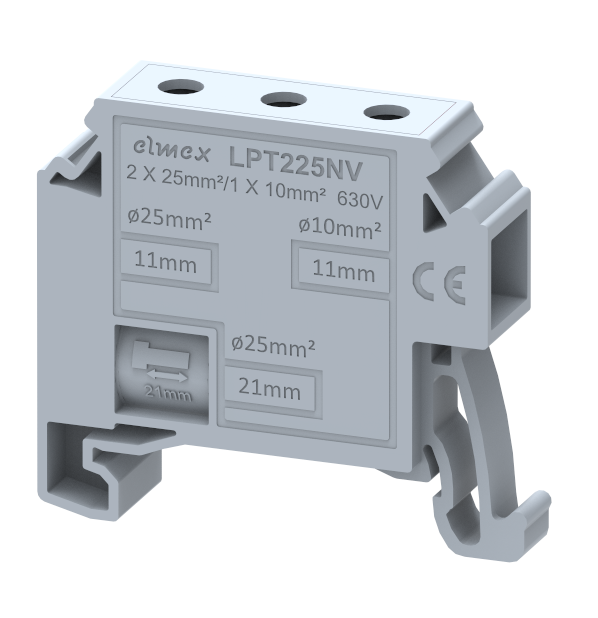

| Type | LPT225NV |
| Wire termination Technology | Screw Connection |
| Rating | 630 V / 101 A / IC - 25 mm², OG - 10 sq.mm / 2.5 Nm |
| GTIN / Harmonize Custom Code | NAV |
| Standard Packing Qty (in No) | 10 |
| Country of Origin | India |
| Thickness (mm) | 11.7 |
| Thickness (inches) | 0.46 |
| Width (mm) | 48.9 |
| Width (inches) | 1.93 |
| Height (mm) | 42.7 |
| Height (inches) | 1.68 |
| Weight For Standard Packing Qty (kg) | 0.48 |
| Housing | Polyamide 6,6 |
| Clamping Material | BRASS |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | IC-16 mm², OG-6 |
| Stranded Wire - Max (sq.mm) | IC-25 mm², OG-10 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 630 |
| Rated Current (A) | 101 |
| Rated Cross Section (sq.mm) | IC - 25 mm², OG - 10 |
| Short Time Withstand Current | 3 |
| Rated Impulse Withstand Voltage (kV) | 4 |
