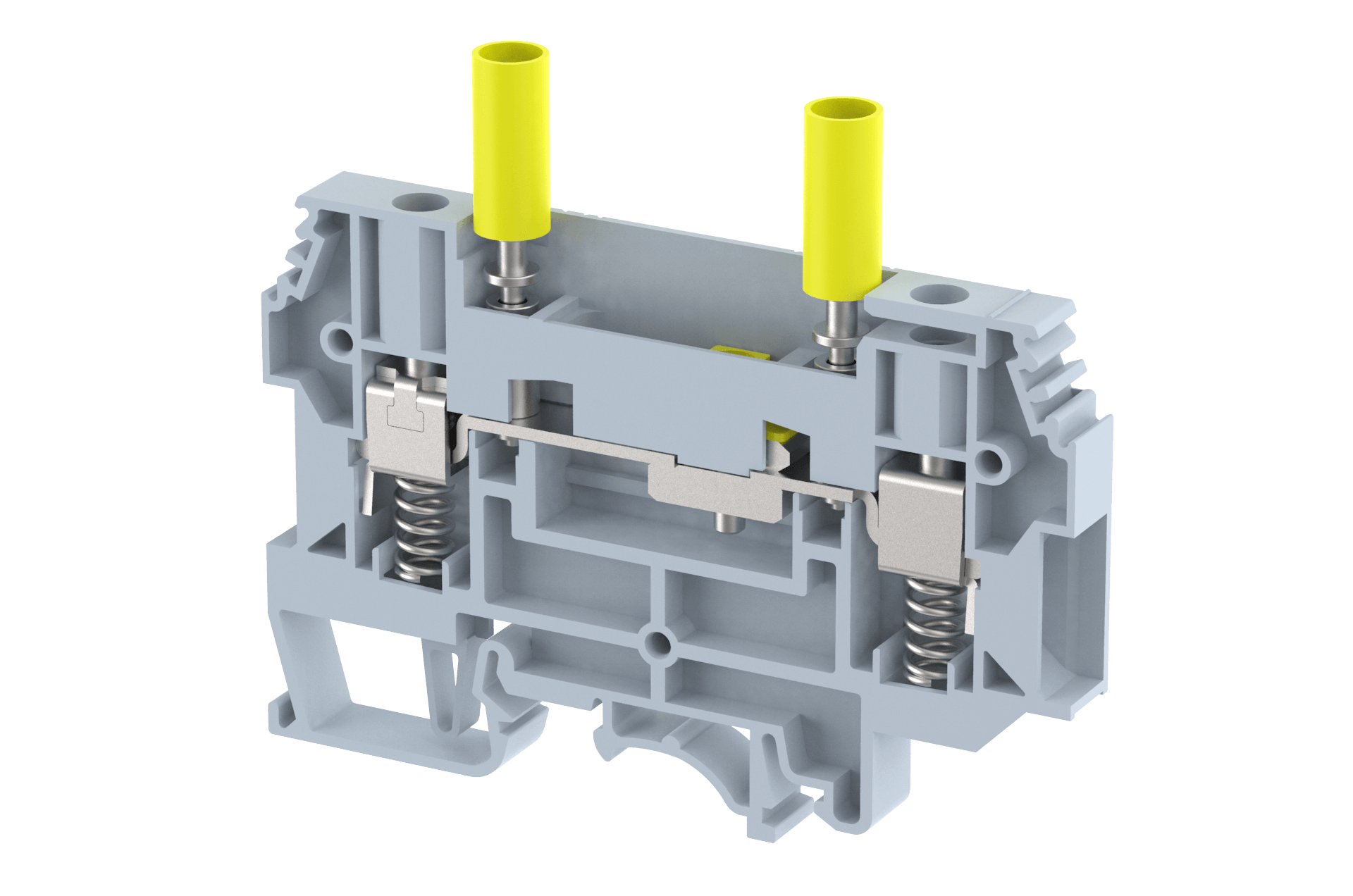

KULTD6

Approvals

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway IEC CB LR : Lloyd’s Register

Line Diagram


General Data

Type KULTD6
Wire termination Technology Screw Connection with spring support
Rating 1000 V / 41 A / 6 sq.mm / 1 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Width (mm) 8
Width (inches) 0.31
Length (mm) 85.2
Length (inches) 3.35
Height (mm) 71.15
Height (inches) 2.8
Weight For Standard Packing Qty (kg) 2.05

Housing Polyamide 6,6
Clamping Material CRCA
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 6
Solid Wire - Max (sq.mm) 10

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 41
Rated Cross Section (sq.mm) 6
Short Time Withstand Current 0.72
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Rated Voltage (V) 550
Rated Current (A) 32
Rated Cross Section (sq.mm) 6

Rated Voltage (V) 600
Rated Current (A) 35
Wire Cross Section - min (AWG) 24
Wire Cross Section - max (AWG) 8

Rated Voltage (V) 600
Rated Current (A) 35
Conductor Size - min (AWG) 24
Conductor Size - max (AWG) 8

DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34 mm
  • Width : 9 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Color - Grey
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover

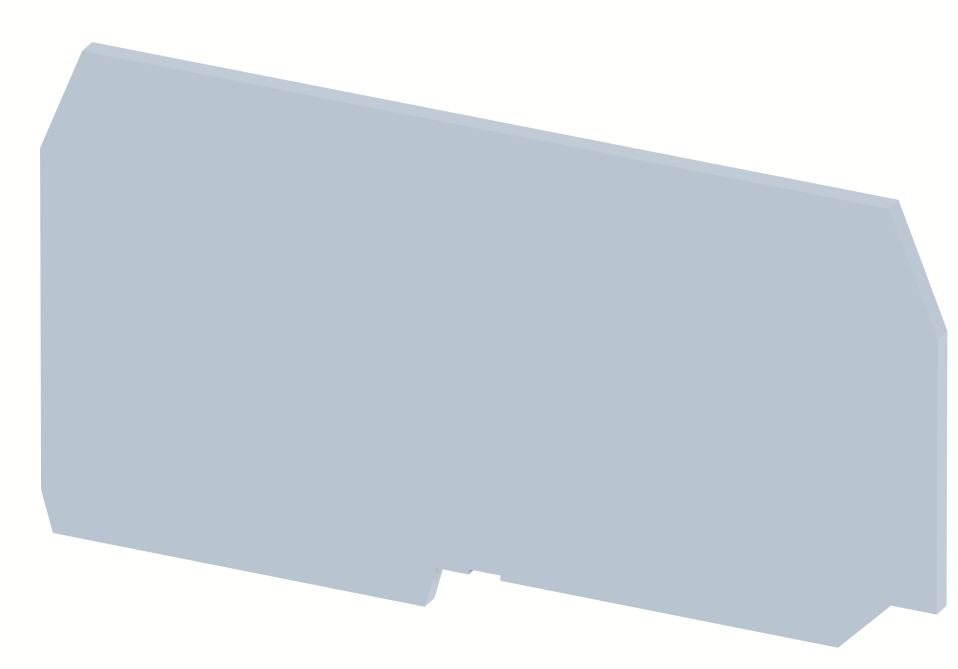

KPSLD
  • KPSLD End cover for Terminal type KULTD6 .
  • Height : 46.4 mm
  • Width : 2 mm
  • Length : 85.1 mm
Fixed Bridge

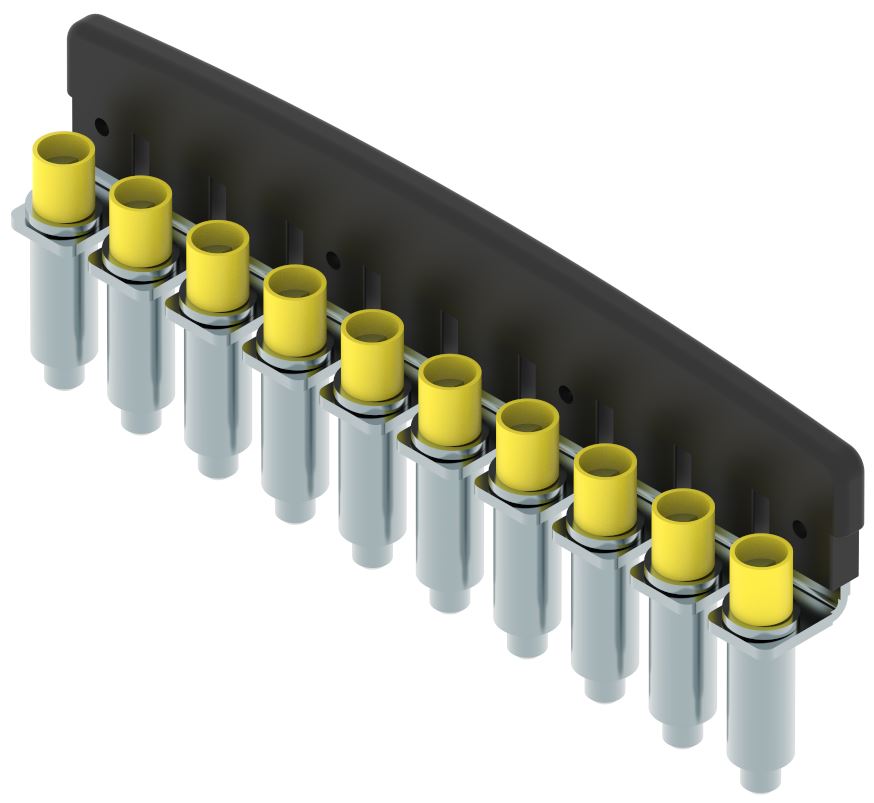

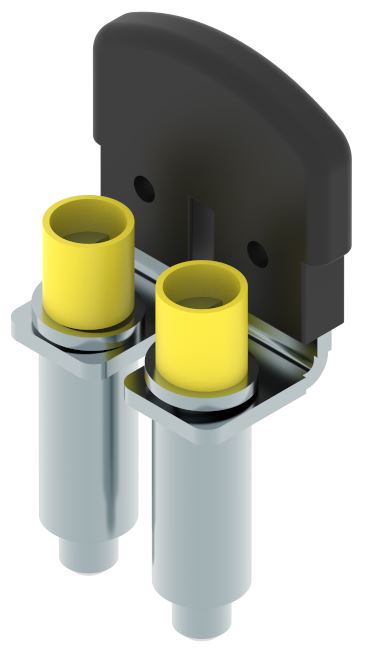

CCLAKG6-10W
  • Fixed Bridge , Type - CCLAKG6-10W
  • Pitch : 8 mm
  • Length : 80.45 mm
CCLAKG6-2W
  • Fixed Bridge , Type - CCLAKG6-2W
  • Pitch : 8 mm
  • Length : 16.45 mm

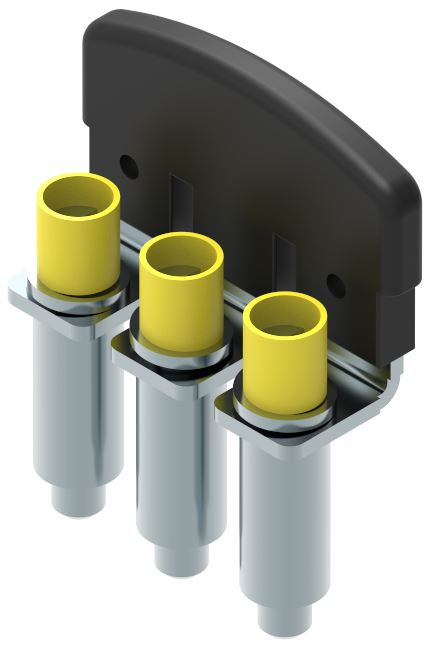

CCLAKG6-3W
  • Fixed Bridge , Type - CCLAKG6-3W
  • Pitch : 8 mm
  • Length : 24.45 mm

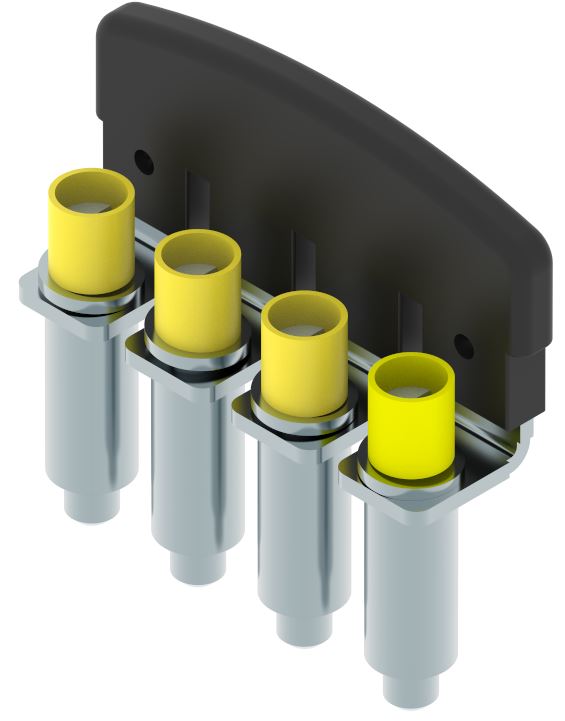

CCLAKG6-4W
  • Fixed Bridge , Type - CCLAKG6-4W
  • Pitch : 8 mm
  • Length : 32.45 mm

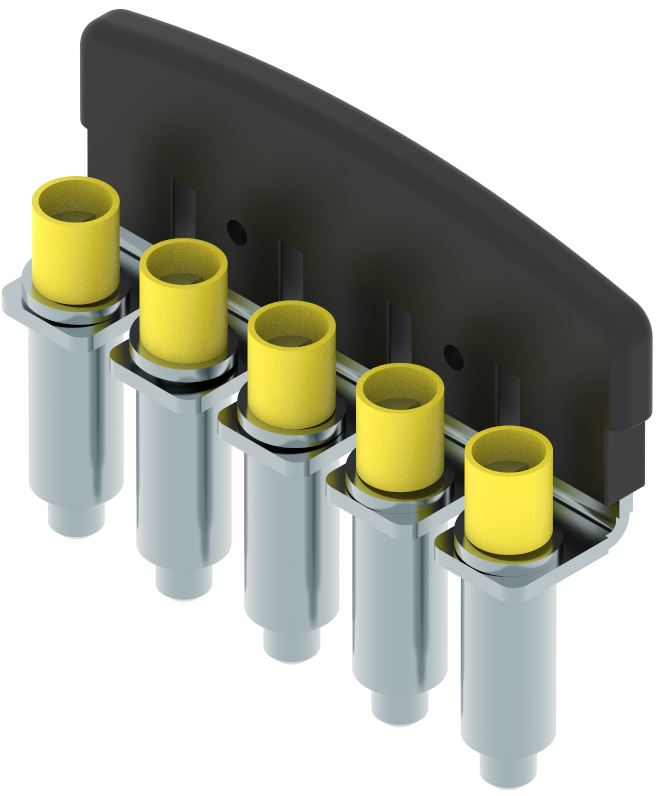

CCLAKG6-5W
  • Fixed Bridge , Type - CCLAKG6-5W
  • Pitch : 8 mm
  • Length : 40.45 mm

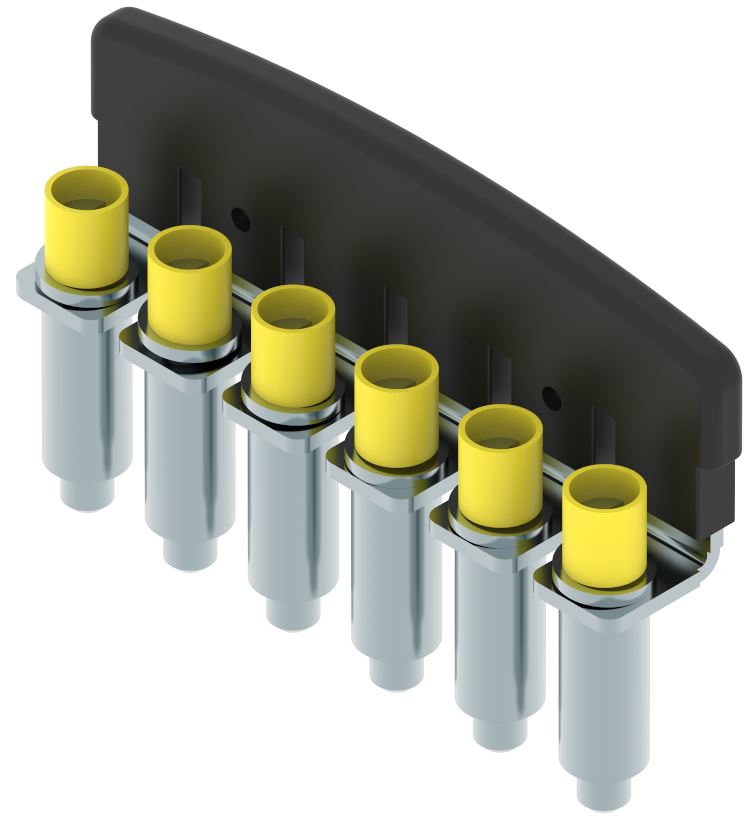

CCLAKG6-6W
  • Fixed Bridge , Type - CCLAKG6-6W
  • Pitch : 8 mm
  • Length : 48.45 mm

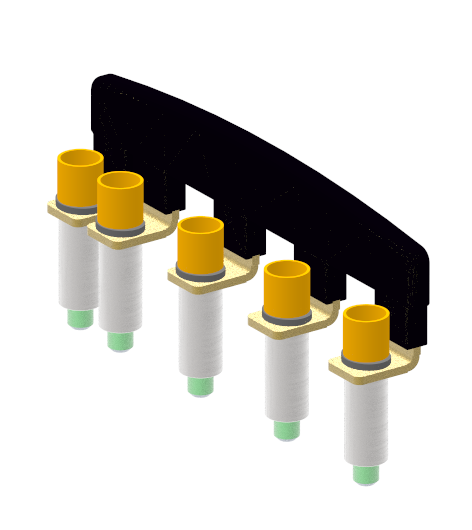

CCLAKG6(4+1)AW
  • INSULATED CROSS CONNECTION LINK USED IN KULTD6 &KULTD6FT (4+1)AW, COLOUR: BLACK
  • Height : 65.65 mm
  • Width : 9.8 mm
  • Length : 64.45 mm
Insertion Bridge

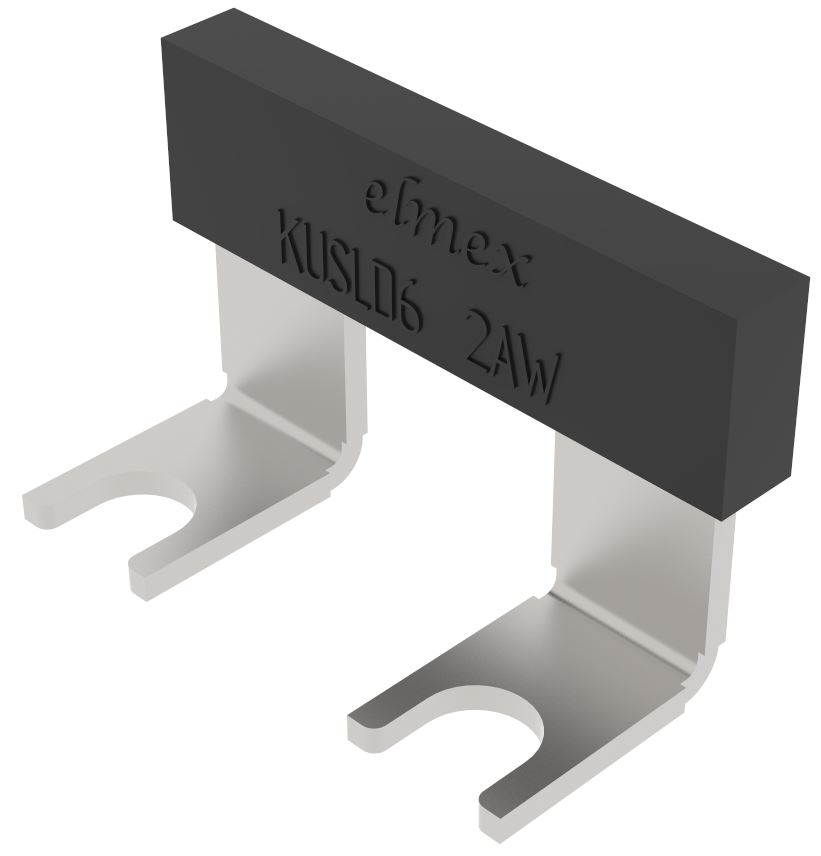

KUSLD6(2)AW
  • Insetion Bridge , Type - KUSLD(2)AW
  • Width : 24.45 mm
  • Length : 11.25 mm

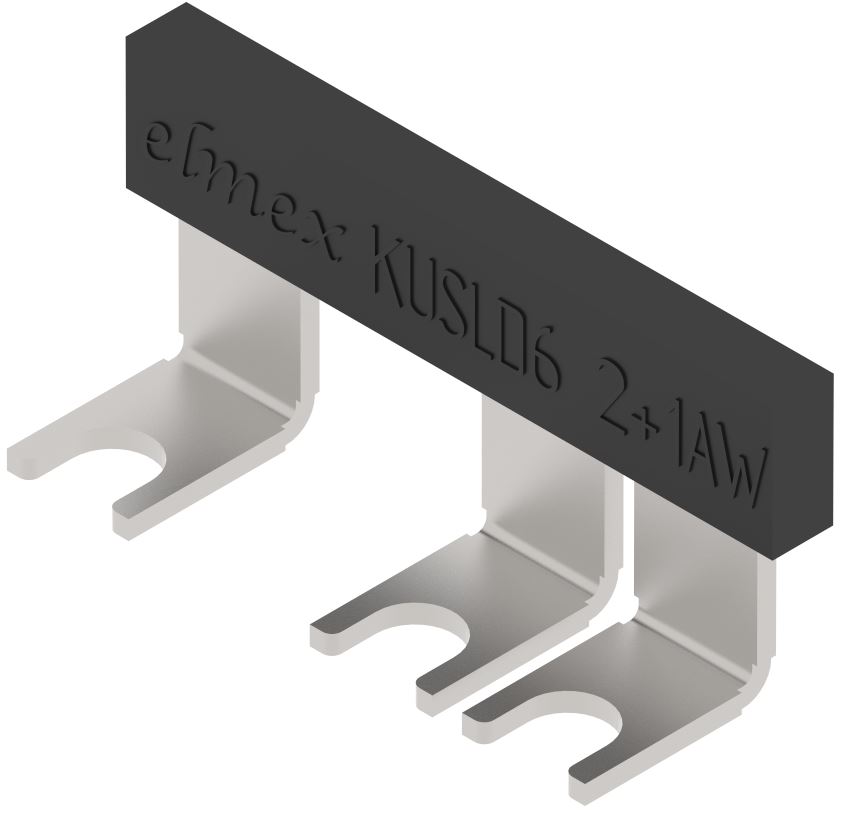

KUSLD6(2+1)AW
  • Insertion Bridge , Type -KUSLD6(2+1)AW
  • Width : 34 mm
  • Length : 11.25 mm

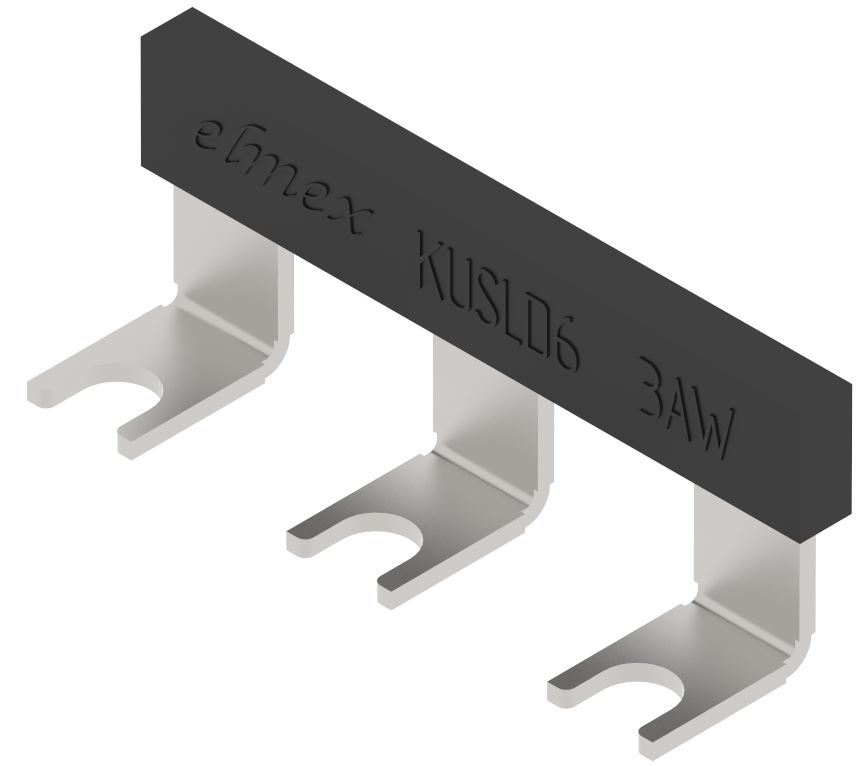

KUSLD6(3)AW
  • Insertion Bridge , Type - KUSLD6(3)AW
  • Width : 40.45 mm
  • Length : 11.25 mm

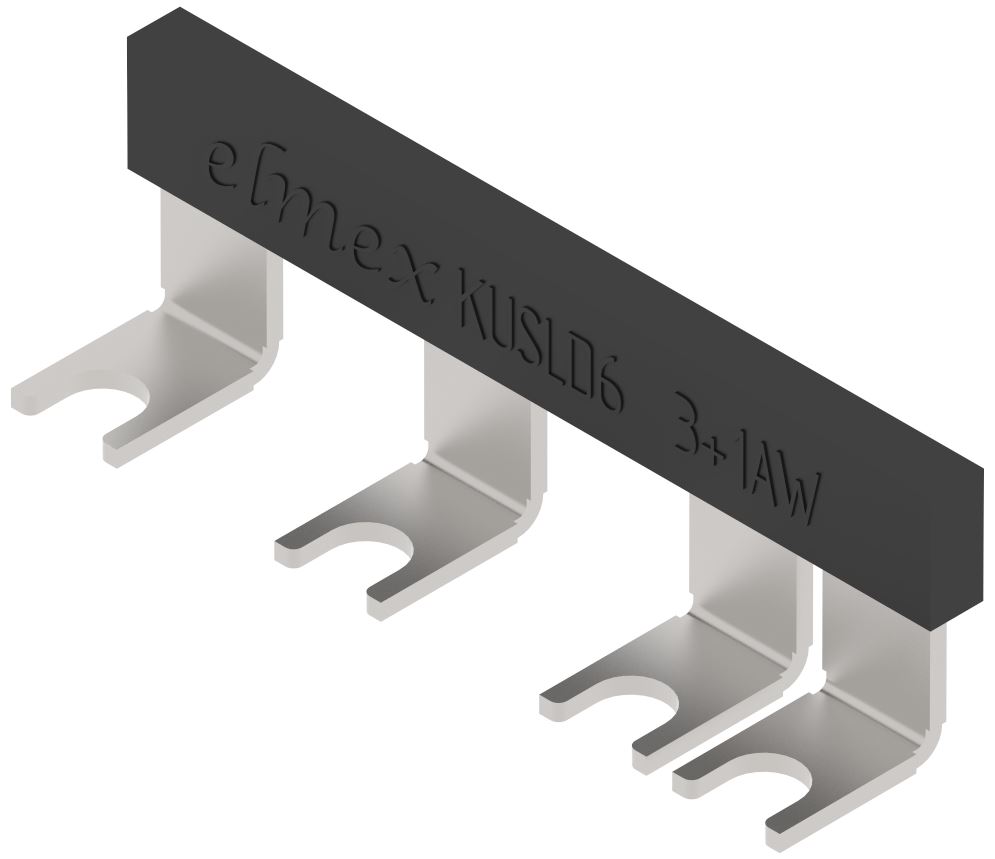

KUSLD6(3+1)AW
  • Insertion bridge , Type - KUSLD6(3+1)AW
  • Width : 48.45 mm
  • Length : 11.25 mm

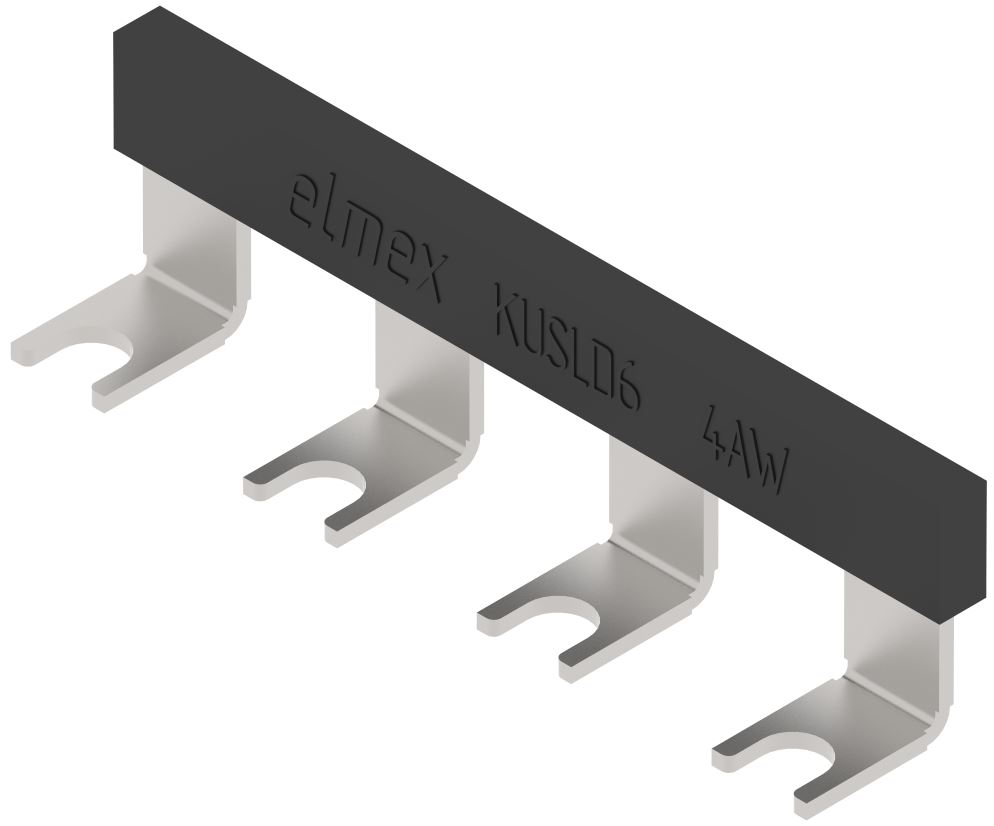

KUSLD6(4)AW
  • Insertion bridge , Type -KUSLD6(4)AW
  • Width : 56.45 mm
  • Length : 11.25 mm

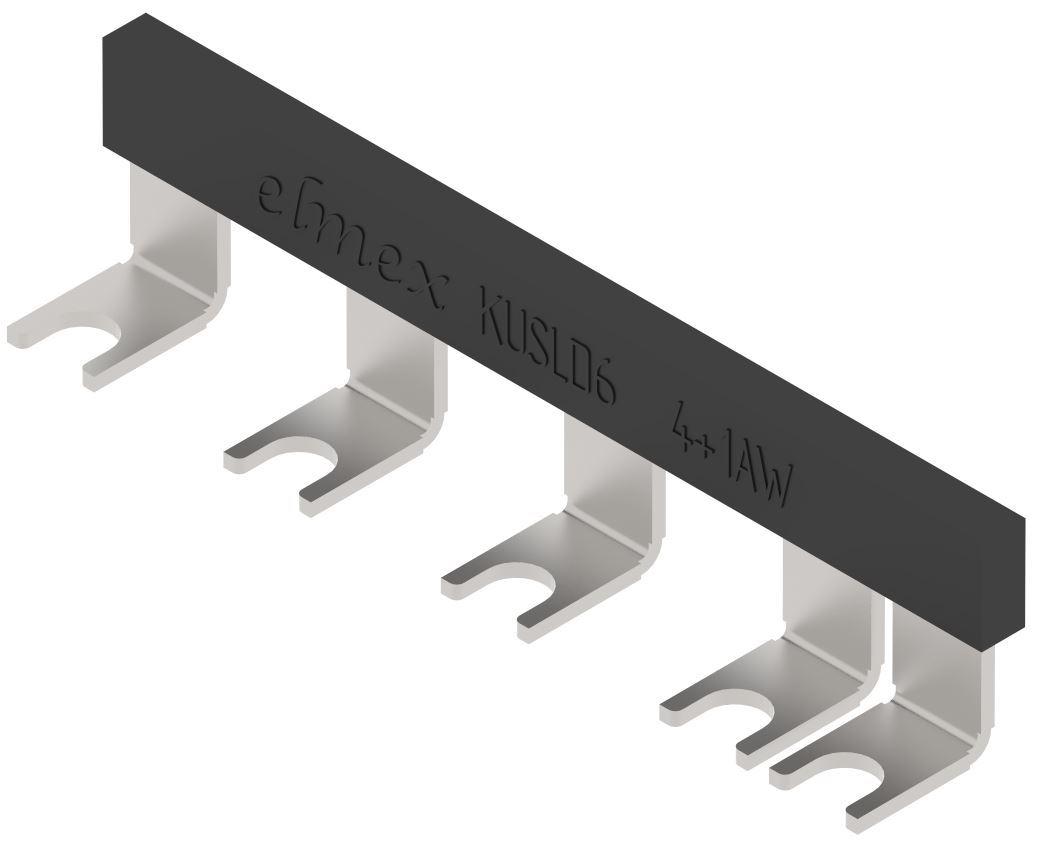

KUSLD6(4+1)AW
  • Insertion bridge , Type -KUSLD6(4+1)AW
  • Width : 56.45 mm
  • Length : 11.25 mm

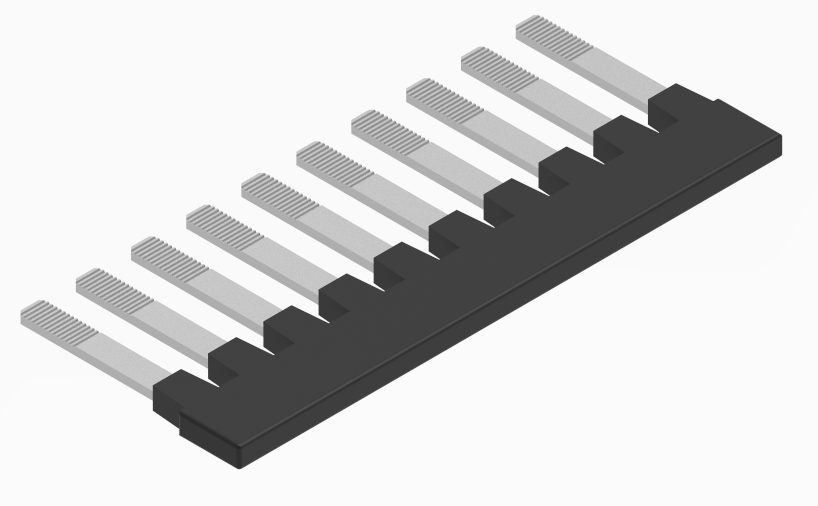

KSLD6-10W
  • Insertion Bridge , Type - KSLD6-10W
  • Width : 79 mm
  • Pitch : 8 mm
  • Length : 34 mm

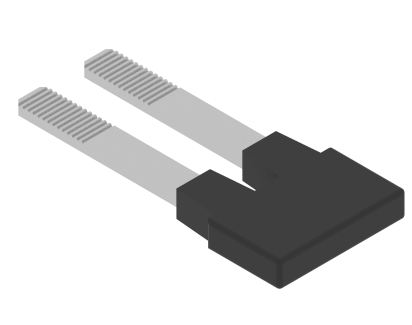

KSLD6-2W
  • Insertion Bridge , Type - KSLD6-2W
  • Width : 15 mm
  • Pitch : 8 mm
  • Length : 34 mm

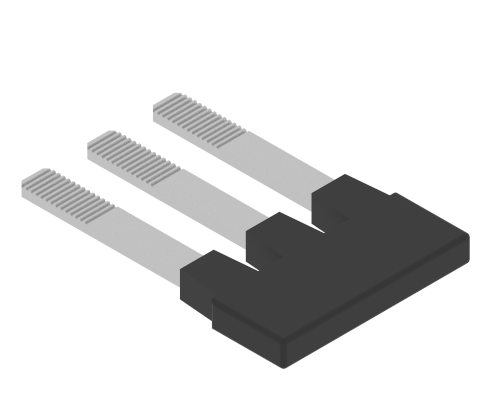

KSLD6-3W
  • Insertion Bridge , Type - KSLD6-3W
  • Width : 23 mm
  • Pitch : 8 mm
  • Length : 34 mm

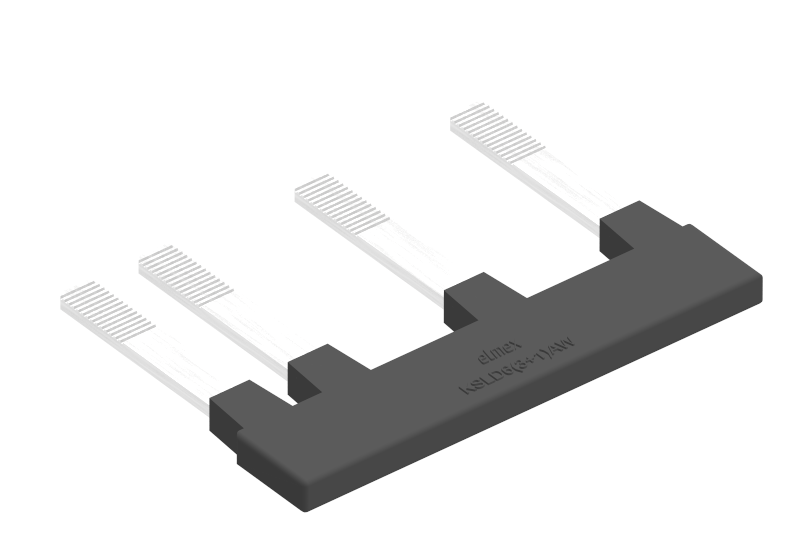

KSLD6(3+1)AW
  • INSULATED COMB TYPE KSLD6 (3+1)AW SHORTING LINK FOR TERMINAL TYPE KULTD6
  • Height : 34 mm
  • Width : 3.2 mm
  • Thickness : 1.2 mm
  • Pitch : 8 mm
  • Length : 47 mm

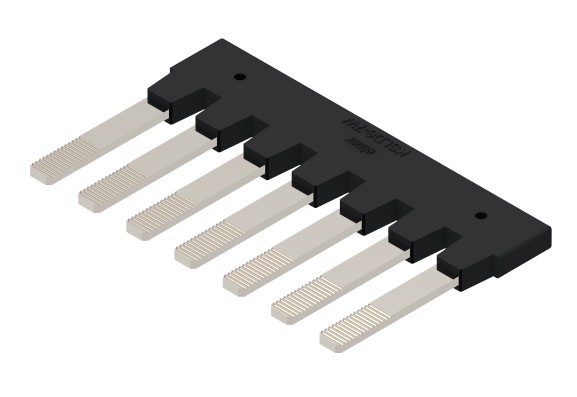

KSLD6-7W
  • INSULATED COMB TYPE KSLD6-7W SHORTING LINK FOR TERMINAL TYPE KULTD6
  • Height : 34 mm
  • Width : 3.2 mm
  • Thickness : 1.2 mm
  • Pitch : 8 mm
  • Length : 55 mm
Marker For Terminal Blocks
LABEL KN8
  • Snap on type PVC marking Label , Type - KN 8
  • Width : 8 mm
Switching Jumper

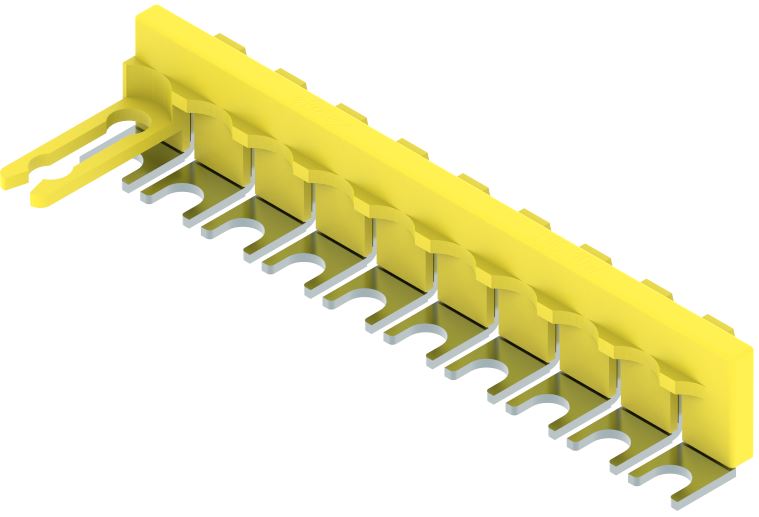

SLD6-10W
  • Switching Jumper , Type - SLD6-10W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 78.6 mm
SLD6-2W
  • Switching Jumper , Type - SLD6-2W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 14.6 mm

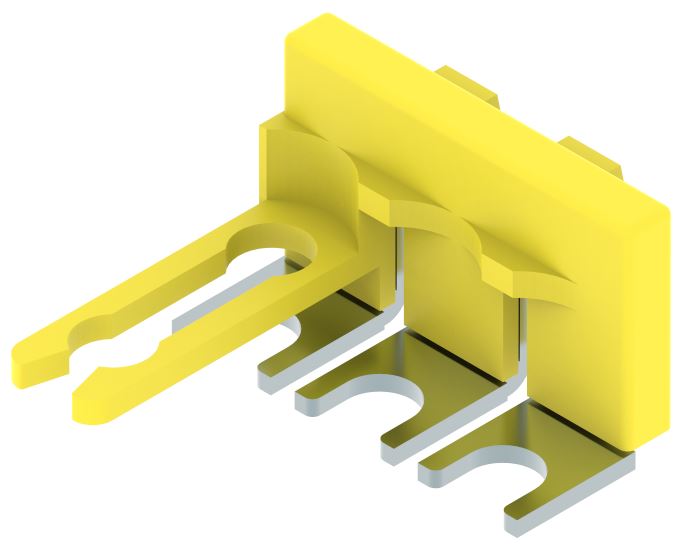

SLD6-3W
  • Switching Jumper , Type - SLD6-3W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 22.6 mm

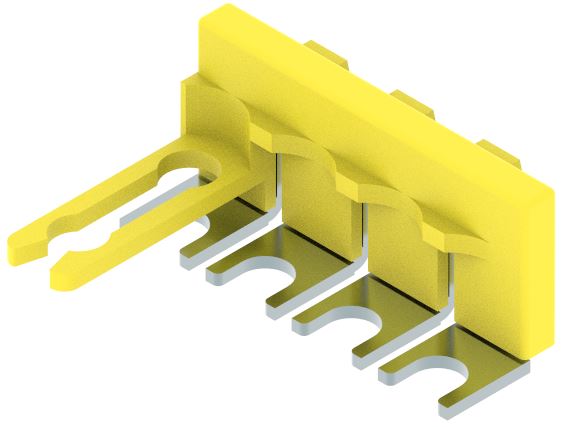

SLD6-4W
  • Switching Jumper , Type - SLD6-4W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 30.6 mm

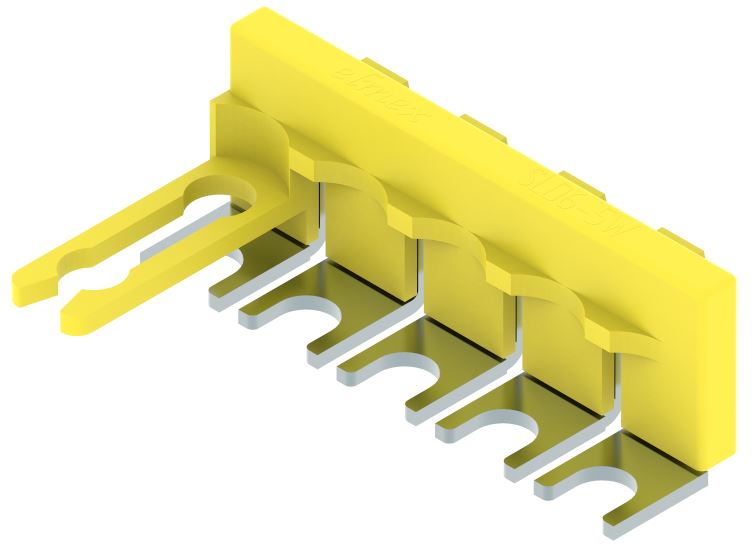

SLD6-5W
  • Switching Jumper , Type - SLD6-5W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 38.6 mm

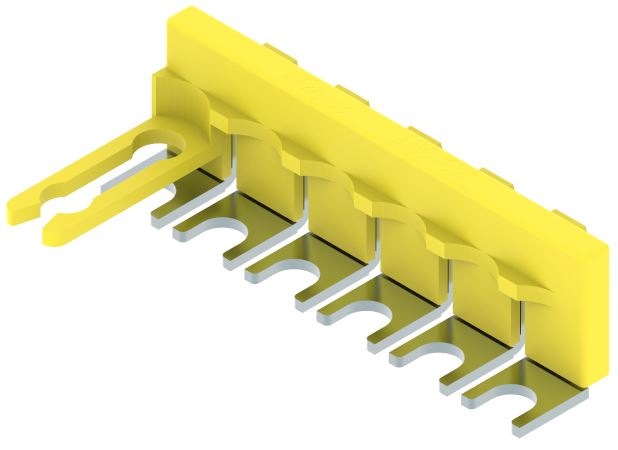

SLD6-6W
  • Switching Jumper , Type - SLD6-6W
  • Height : 13.6 mm
  • Pitch : 8 mm
  • Length : 46.4 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
Switching Lock

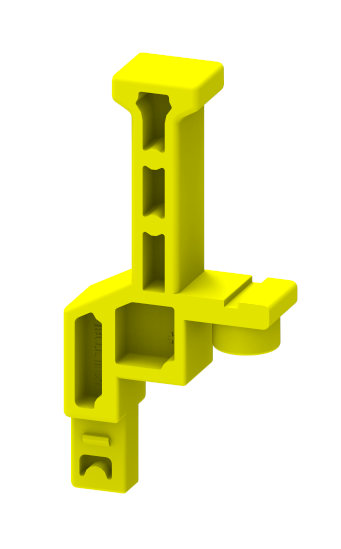

KULTD6LP
  • Switching lock for preventing connection and disconnection operations on the KULTD6LP terminal block.
  • Height : 32.3 mm
  • Thickness : 5.75 mm
  • Length : 15.85 mm

Enquire Now
