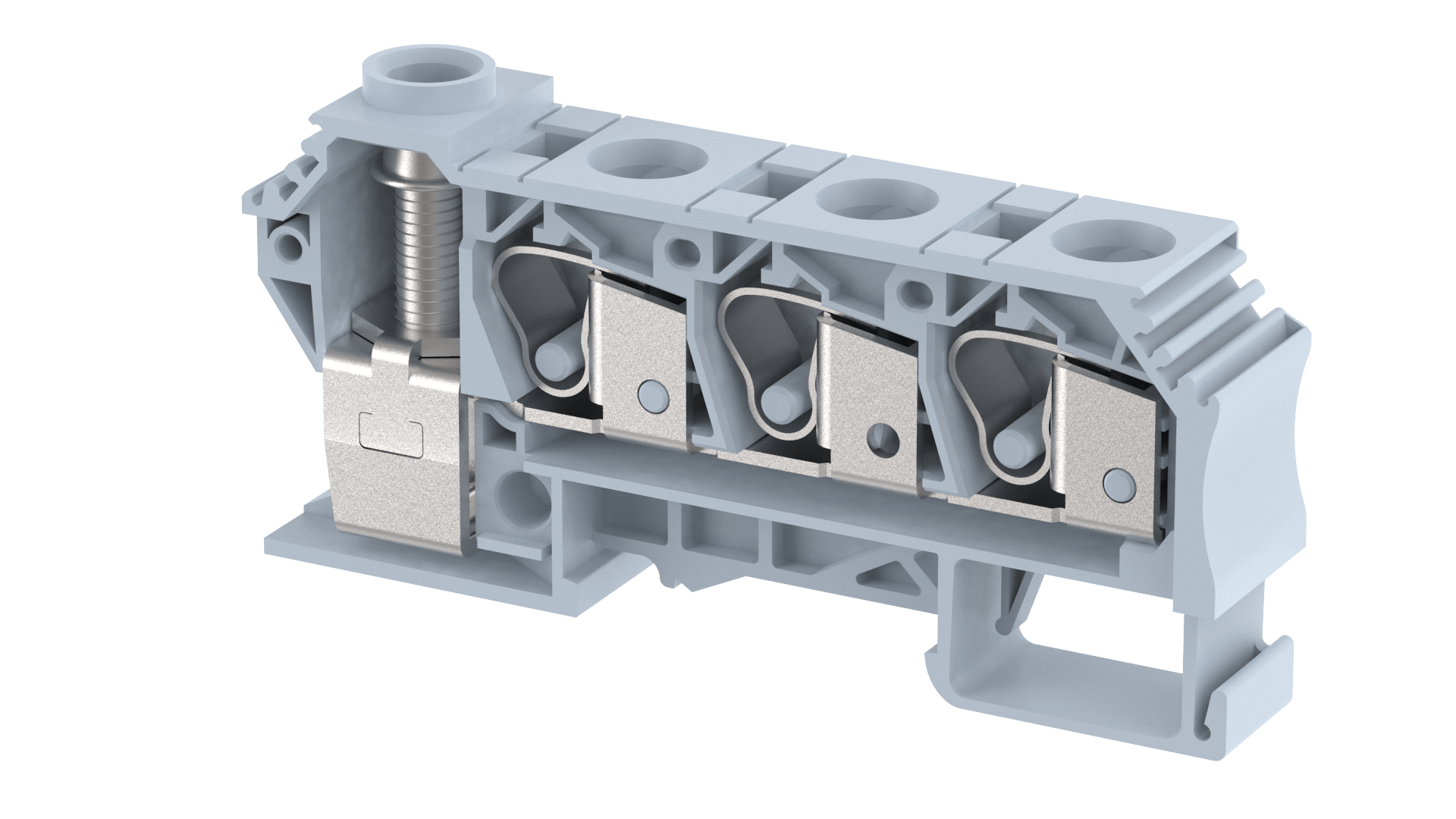

DTB35-10

Approvals

Line Diagram

General Data

Type	DTB35-10
Wire termination Technology	Spring Cage Connection
Rating	800 V / 125 A / IC -35 mm² , OG - 10 sq.mm / IC - 3 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Width (mm)	17.5
Width (inches)	0.69
Length (mm)	89
Length (inches)	3.5
Height (mm)	44.5
Height (inches)	1.75
Weight For Standard Packing Qty (kg)	3.06

Housing	Polyamide 6,6
Clamping Material	Spring Steel
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	IC- 6 mm² , OG - 1.5
Stranded Wire - Max (sq.mm)	IC- 35 mm² , OG - 10

Standard	IEC 60947-7-1
Rated Voltage (V)	800
Rated Current (A)	125
Rated Cross Section (sq.mm)	IC -35 mm² , OG - 10
Short Time Withstand Current	4.2
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Cover Profile

PCPDBF-5

Cover Profile , Type -PCPDBF-5
Height : 14.1 mm
Thickness : 1.5 mm
Length : 113 mm

DIN Rail Perforated

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
Height : 34 mm
Width : 9 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Color - Grey
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

Insertion Bridge

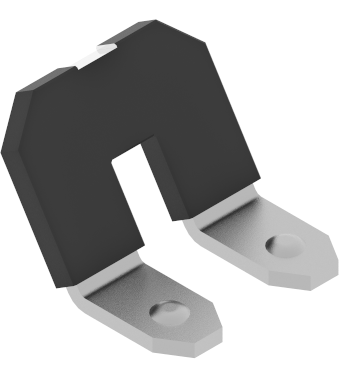

SCL17.5

Insertion Bridge , Type - SLC17.5
Width : 28.9 mm

Marker For Terminal Blocks

LABEL KN17

Snap on type PVC marking Label , Type - KN 17
Width : 17 mm

Partition Plate

DBF-5

Partition Plate with foot used to support protection cover , Type - DBF-5
Height : 42.45 mm
Width : 3 mm
Length : 112 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
