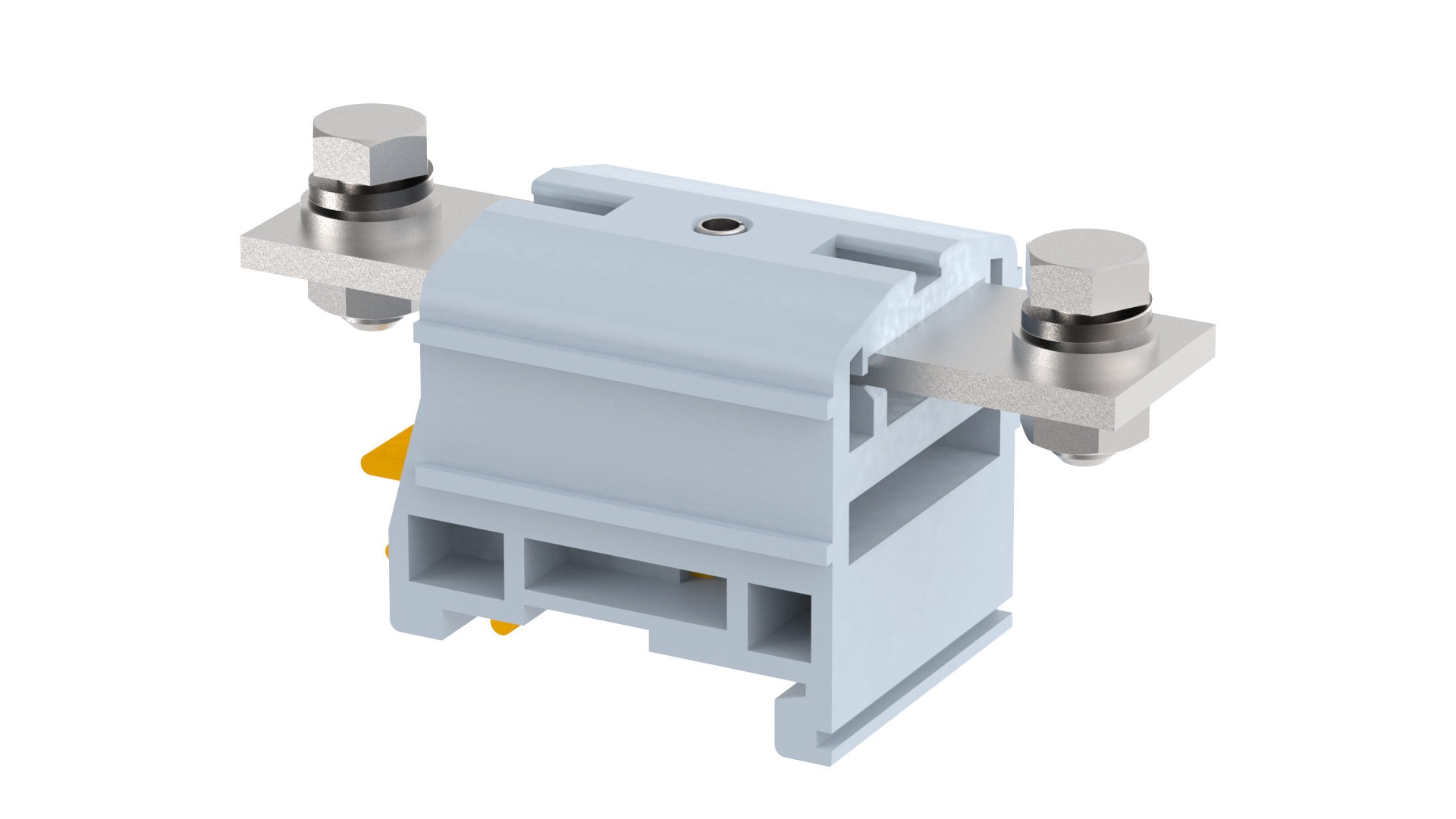

DPBB50

Approvals

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA

Line Diagram


General Data

Type DPBB50
Wire termination Technology Bolt Connection
Rating 1000 V / 150 A / 50 sq.mm / 3 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 10
Country of Origin India

Width (mm) 37.2
Width (inches) 1.46
Length (mm) 85
Length (inches) 3.35
Height (mm) 42.9
Height (inches) 1.69
Weight For Standard Packing Qty (kg) 0.89

Housing Polyamide 6,6
Clamping Material MS
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi, Gray

Stranded Wire - Min (sq.mm) 10
Stranded Wire - Max (sq.mm) 50

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 150
Rated Cross Section (sq.mm) 50
Short Time Withstand Current 6
Rated Impulse Withstand Voltage (kV) 12
Pollution Degree 3

Rated Voltage (V) 1000
Rated Current (A) 150
Rated Cross Section (sq.mm) 50

Rated Voltage (V) 1000
Rated Current (A) 130
Wire Cross Section - min (AWG) 6
Wire Cross Section - max (AWG) 1

Rated Voltage (V) 1000
Rated Current (A) 130
Conductor Size - min (AWG) 6
Conductor Size - max (AWG) 1

Cover Profile
PCP120
  • Cover profile for Terminal type - DPBB50 , DPBB70 , DPBB120(Covers one terminal block)
  • Width : 41 mm
  • Thickness : 1.5 mm
  • Length : 126 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUSL
  • Universal rail mounted end clamp with fixing screws , Color - Grey
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
Marker For Terminal Blocks
LABEL KN10
  • Snap on type PVC marking Label , Type - KN 10
  • Width : 10 mm
Partition Plate
BPN70
  • Barrier Plate with Foot , Type : BPN70 , colour : GREY
  • Height : 67.5 mm
  • Width : 3 mm
  • Length : 125 mm
Marker carriers
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
