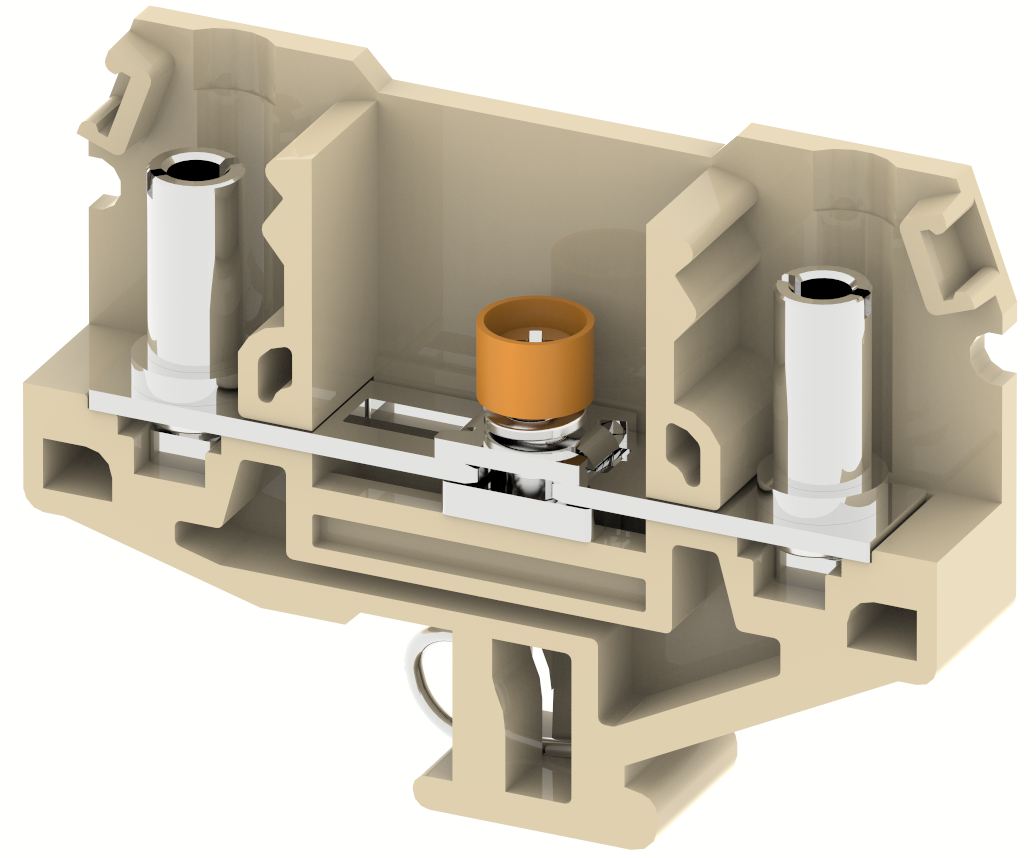

CLTDM4

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CLTDM4
Wire termination Technology Bolt Connection
Rating 1100 V / 45 A / 6 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 13
Thickness (inches) 0.51
Width (mm) 69
Width (inches) 2.72
Height (mm) 50
Height (inches) 1.97
Weight For Standard Packing Qty (kg) 2.25
Weight For Standard Packing Qty (kg) 2.21

Housing Melamine
Clamping Material -
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black, Green
Clamping Material BRASS

Stranded Wire - Min (sq.mm) 2.5
Stranded Wire - Max (sq.mm) 6

Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) 45
Rated Cross Section (sq.mm) 6
Short Time Withstand Current (kA) 0.72
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3
Rated Voltage (V) 1100

Cover Profile
PCD3
  • Cover profile - type - PCD3
  • Height : 26.2 mm
  • Width : 73 mm
  • Thickness : 1.5 mm
PCD 39
  • Cover profile for terminal type - CATDM4 , CLTDM4NV (covers 3 terminal blocks)
  • Height : 26 mm
  • Thickness : 1.5 mm
  • Length : 70 mm
PCD26
  • Cover profile for terminal type - CATDM4 , CLTDM4NV (covers 2 terminal blocks)
  • Height : 26 mm
  • Thickness : 1.5 mm
  • Length : 70 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
End Cover

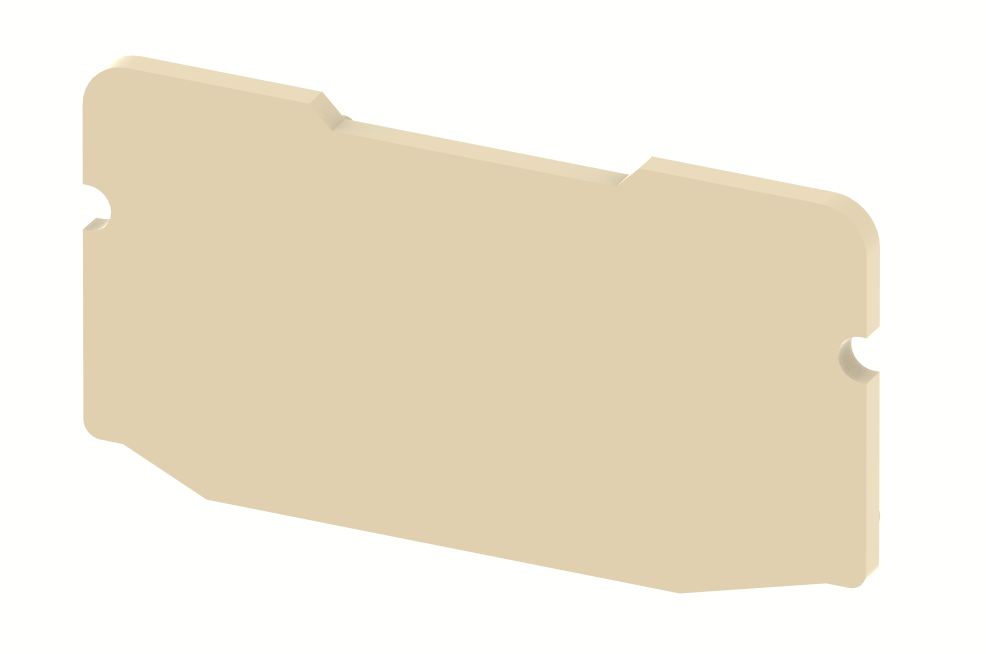

EPLD4
  • EPLD4 End cover for Terminal type CLTDM4NV , colour : KHAKHI
  • Height : 36.9 mm
  • Width : 2.5 mm
  • Length : 69 mm
Insertion Bridge
ADSL-10W
  • Insertion Bridge , Type – ADSL-10W
  • Width : 124.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-2W
  • Insertion Bridge , Type – ADSL-2W, Available Variants - 2W , 3W , 4W , 7W , 10W
  • Width : 20.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-3W
  • Insertion Bridge , Type – ADSL-3W
  • Width : 33.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-4W
  • Insertion Bridge , Type – ADSL-4W
  • Width : 46.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-7W
  • Insertion Bridge , Type – ADSL-7W
  • Width : 85.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Marker carriers
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
