An Elevator is an enclosed cabin that transports people and goods vertically between floors in a building. Escalators, in contrast, are motor-driven moving staircases designed to carry large volumes of pedestrian traffic over short vertical distances. While both systems move people between levels, they utilize distinct mechanisms and are suited for different applications.
Behind the seamless operation of elevators and escalators relies on crucial components like Slim Relay, Modular Relay, Phase Indicator, Timer, and Terminal Block, which provides the precise and secure electrical connections necessary for reliable performance. For this high-stake environment, Elmex Controls Pvt Ltd offers robust solutions that power the control panels of elevators and escalators with confidence.
Purpose of Elevator and Escalator Control Systems:
Elevator and Escalator control systems are the central command that ensures the safe, efficient, and reliable movement of people and goods. They manage all functions, from user commands and door operations to speed regulation and safety features. By handling these complex tasks, these control systems are vital for passenger safety, efficient traffic flow, and the overall operational integrity of vertical transport.
Addressing the Unexpected: Elevator Failure Points:
· Door Malfunctions: Sensors, tracks, and the door operator itself can malfunction, causing the doors to not open or close properly.
· Incorrect Levelling: The elevator car may stop at an uneven height relative to the floor, posing a tripping hazard.
· Control System Errors: Software or electrical issues can lead to erratic movements, unresponsive panels, or unexpected stops.
Beyond the Steps: The Hidden Danger of Escalators:
· Falls: The most frequent accident, often due to a user losing balance or failing to hold the handrail.
· Entrapment: Fingers, clothing, or shoes can get caught in the moving parts of the escalator, leading to injuries.
· Mass-Injury Events: Overcrowding can lead to a cascading series of injuries when the escalator cannot handle the load.
Weak Links Found Behind Both Rides:
Elevatorsand Escalators are vulnerable to mechanical failures, such as worn parts and broken steps, and electrical issues like power failures or faulty wiring. Inadequate maintenance can accelerate component wear and increase the frequency of breakdowns. Furthermore, for high-rise buildings that require compact and lightweight control panels, traditional components like bulky and heavy terminal blocks pose a significant challenge for optimizing space and reducing overall weight.

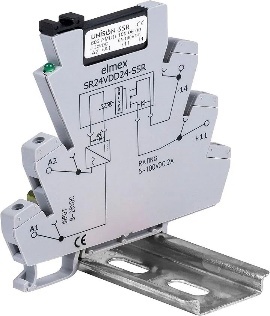

Slim Relay - 1 C/O: Small in Size, Strong in Performance:
Slim relay(6.2 mm) is essential, offering a compact, space-saving design ideal for high-density control cabinets with limited panel space. Available in screw and push-in connection technologies, these relays feature a 1 C/O changeover configuration that serves as a crucial interface, providing robust electrical isolation between low-power control circuits and high-power load circuits. This allows them to efficiently switch a single electrical circuit between two states.

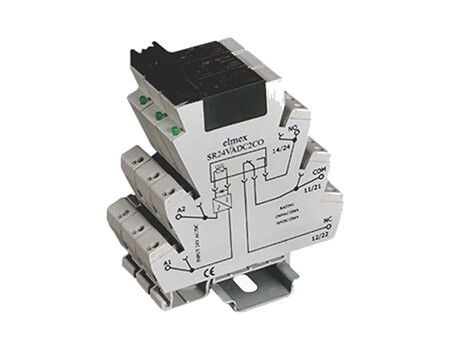

Modular Relay - 2 C/O:Dual Control, Double Reliability:
Modular relay (14.5 mm) is a crucial safety component that uses a low-voltage control signal to safely manage high-power circuits for essential functions. Designed with reliable screw connection technology, it controls two independent circuits simultaneously, allowing for the switching of motor, activation essential interlocks. By isolating sensitive control logic from the heavy-duty machinery, this modular relay ensures reliable and safe functionality.
Elmexslim relays and modular relay offer a crucial set of features to ensure reliable and safe operation.
· Space-saving design: Compact relay units in various widths, such as 6.2 mm and 14.5 mm, which are ideal for space-constrained applications.
· Easy Installation: DIN rail mounting allows for quick and secure installation in complex control cabinets.
· Visual Diagnostics: An integrated LED indicator simplifies maintenance and speeds up troubleshooting by providing a clear status of the relay's function.
· Enhanced Safety: The self-extinguishing plastic housing minimizes fire hazards, which is a critical safety consideration in vertical transportation.
· Leakage Current Control: Preventing malfunction of controls caused by excessive leakage current.
· Polarity-Independent Input: The device can correctly process an electrical signal or connection regardless of whether the input is positive or negative.
· High Load Capability: Can handle high-power contact loads, suitable for controlling high-power equipment like elevator motors and brakes.
Phase Indicator:Watch Every Phase, Avoid Every Fault:
Elmexprovide phase indicatorthat ensure smooth and safe operation with real-time monitoring of phases. These devices indicate the presence of phase—all in a compact design that fits seamlessly into high-density control panels.
Key features of Elmex phase indicator relays:
· 17.5 mm DIN rail housing: This compact, modular design is suitable for high-density control cabinets like elevator and escalator, saving valuable panel space.
· Available for single and three-phase indication: They are available for both single-phase and three-phase applications (e.g., R-Y-B).
· LED technology for long life: Integrated LEDs provide bright, durable visual status indicators, aiding operators and maintenance technicians in quick diagnostics.
· Provision of multi-meter probe: This feature allows for safe and convenient electrical parameter measurement without disconnecting wires, simplifying system checks and troubleshooting.
Advanced Terminal Block Solution for Modern Control Systems:
Reliable, maintenance-free electrical connections are essential in high-motion environments like elevator and escalator control systems. Push-in technology allows tool-free wire insertion, dramatically reducing installation time and simplifying wiring in high-density control cabinets. Spring-clamp technology uses a pre-stressed spring to press the wire firmly against the current bar, offering high pull-out force and exceptional stability. Screw-clamp technology feature interlocking lips on the contact clamp to prevent thread damage and deformation from overtightening. A unique current-bar design with a recessed anchor for hook-bladed cable lugs further prevents accidental pull-outs once clamped, guaranteeing safe and reliable operation.
· Space-Optimized Micro Terminal Blocks: Their compact design allows for higher wiring density, which is essential for space-constrained elevator and escalator control panels.
· Fault Isolating Fuse Terminal Blocks: Allow quick fuse replacement to minimize downtime and safely resolve overcurrent faults.
· Modular Plug-and-Socket Terminal Blocks: The PQPP Terminal Block provides versatile, secure wire termination via push-in technology. An integrated locking lever (1- or 2-way) ensures a reliable connection. Mounting flexibility includes DIN rail compatibility (with PQ2.5-1C1P or 2T2P) and direct panel surface options (HM, VM, PFT).
· The DPSC Terminal Block offers modular versatility with many variants. It utilizes spring clamp technology for secure wire termination and provides mounting flexibility for both DIN rails and direct panel mounting (including WF and WW).
· Quick Disconnect Knife-Edge Terminal Blocks: Provide safe and easy circuit isolation for testing, which accelerates fault diagnosis during maintenance.
· Vibration-Proof PCB Terminal Blocks: Ensure reliable and vibration-resistant connections to PCBs, protecting the sensitive electronics of elevator and escalator controllers. Specially designed for easy and safe transmission of signals, data, and power, they feature integrated protective guides that prevent incorrect insertion of the conductor.
· Robust Feed-Through Terminal Blocks for Power Distribution: Provide reliable connections for power circuits, ensuring consistent performance even in demanding shaft environments.
· Secure Earth Terminal Blocks: Deliver low-resistance, vibration-proof grounding that is essential for compliance with strict electrical safety standards.
Timers:Precise Delay for Smooth Operation:

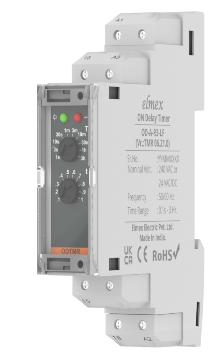

On-Delay Timer:An on-delay timers that wait for a set time before activating an external load. In elevators, it creates a brief pause after a "door close" button is pressed, ensuring a short grace period before the doors begin to shut. In escalators, when a sensor detects a person, an on-delay timer starts a brief countdown before the escalator moves, which prevents unnecessary operation from quick pass and saves energy.
Off-Delay Timer: An off-delay timers keep an external load powered for a preset time. In elevators, door timers keep doors open for a set duration, resetting when the "door open" button is pressed. In escalators, the timer ensures the escalator continues to run for a few seconds after the last person gets off, preventing abrupt stops.
Star-Delta Timer:A star-delta timers are designed to reduce the massive surge of power; they do this by initially starting the motor in "star" connection and then switching it to a full-power "delta" connection after a precise pause delay.
Multifunction Timer: Elmexalso provide versatile multifunction timers, which combine multiple timing functions like on-delay, off-delay, interval, and cyclic timing into a single device.
